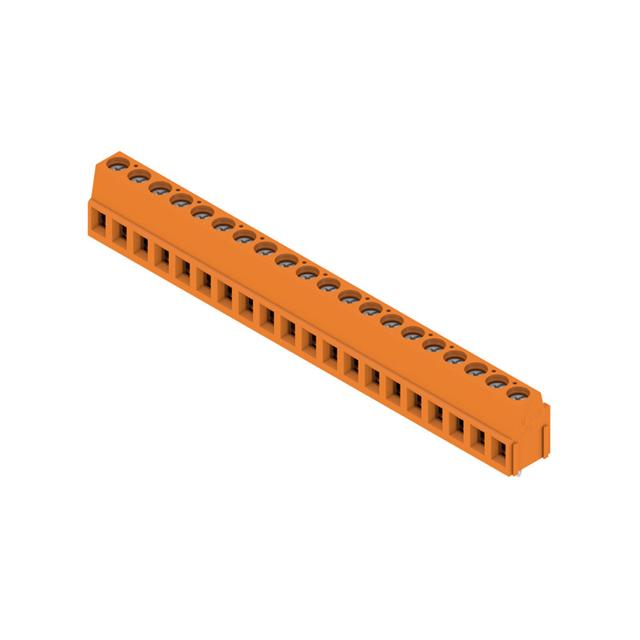

9994290000

Manufacturer :

Weidmuller

Product Category :

Wire to Board

HTS Code :

8536.69.40.40

Mounting Type :

Through Hole

Wire Termination :

Screw - Clamping Yoke, Tension Sleeve

Hole Diameter :

1.3 mm

Operating Temperature :

-50°C~120°C

Approval Agency :

CSA, cURus

ECCN Code :

EAR99

Current Rating :

10A

Voltage - Rated :

300V

Pitch :

0.200 5.08mm

Number of Ways :

20

Series :

Omnimate LM

Stripping Length :

6mm

Housing Material :

Thermoplastic, Wemid

Screw Thread :

M2.5

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Number of Decks :

1

Wire Cross Section :

2.5 mm2

Orientation :

Straight

RoHS Status :

RoHS Compliant

Color :

Orange

Number of Contacts :

20

Wire Gauge (Max) :

24 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

94V-0

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Contact Material - Plating :

Copper Alloy - Tin Plated

Number of Levels :

1

Wire Gauge (Min) :

14 AWG

Contact Plating :

Tin

Mount :

Through Hole

Mating Orientation :

Horizontal with Board

Wire Gauge :

14-24 AWG

Safety Approval :

UL; CSA

Feature :

Interlocking (Side)

Termination :

Screw

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Radiation Hardening :

No

Number of Rows :

1

Current :

15A

Factory Lead Time :

12 Weeks
