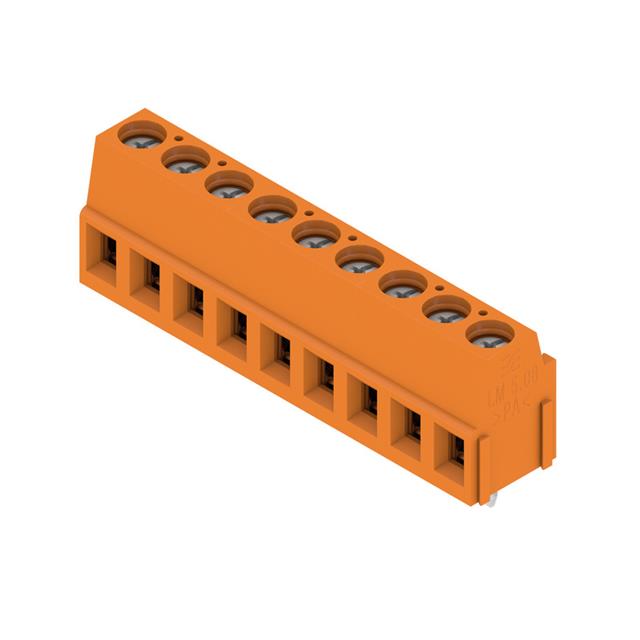

9994180000
Or copy the link below:
- Mfr.Part #
- 9994180000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9P SIDE ENT 5.08MM PCB
- Stock
- 11,781
- In Stock ：
- 11,781
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Wire to Board
- Torque - Screw :
- 0.4-0.5 Nm (3.5-4.4 Lb-In)
- Operating Temperature :
- -50°C~120°C
- Contact Plating :
- Tin
- Termination :
- Screw
- Number of Levels :
- 1
- Hole Diameter :
- 1.3 mm
- Flammability Rating :
- UL94 V-0
- Published :
- 2008
- Color :
- Orange
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Interlocking (Side)
- RoHS Status :
- RoHS Compliant
- Current :
- 15A
- Series :
- Omnimate LM
- Mount :
- Through Hole
- Wire Termination :
- Screw - Clamping Yoke, Tension Sleeve
- Pbfree Code :
- yes
- Wire Gauge :
- 14-24 AWG
- Number of Rows :
- 1
- Stripping Length :
- 6mm
- Voltage - Rated :
- 300V
- Number of Decks :
- 1
- Wire Gauge (Min) :
- 14 AWG
- Mating Orientation :
- Horizontal with Board
- Housing Material :
- Thermoplastic, Wemid
- Current Rating :
- 10A
- Number of Contacts :
- 9
- Number of Ways :
- 9
- Approval Agency :
- CSA, cURus
- Radiation Hardening :
- No
- Terminal and Terminal Block Type :
- STRIP TERMINAL BLOCK
- Screw Thread :
- M2.5
- Wire Gauge (Max) :
- 24 AWG
- Contact Material - Plating :
- Copper Alloy - Tin Plated
- Packaging :
- Bulk
- Safety Approval :
- UL; VDE; CSA
- Pitch :
- 0.200 5.08mm
- Factory Lead Time :
- 12 Weeks
- Orientation :
- Straight
- Datasheets
- 9994180000
0.200 5.08mm Orange Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-24 AWG Omnimate LM
9994180000 Overview
The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LM Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -50°C~120°C Operating Temperature.
9994180000 Features
Omnimate LM series
9994180000 Applications
There are a lot of Weidmüller
9994180000 Terminal Blocks applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
