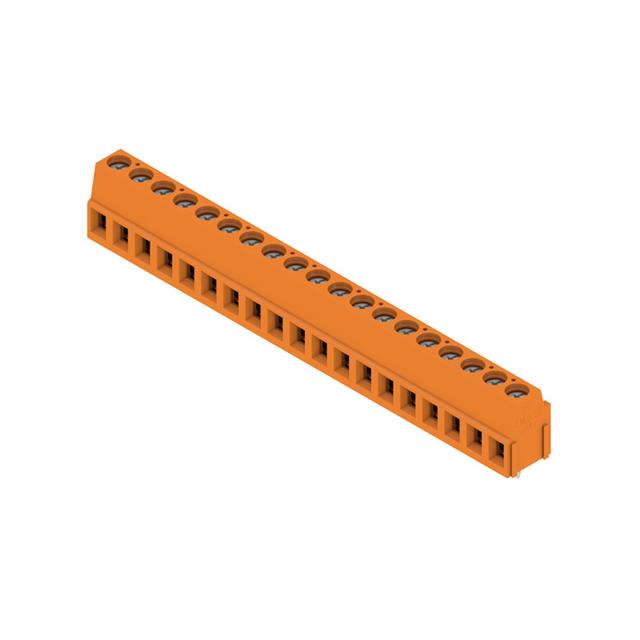

9994280000

Manufacturer :

Weidmuller

Product Category :

Wire to Board

Additional Feature :

94V-0

Pitch :

0.200 5.08mm

Wire Gauge (Max) :

24 AWG

HTS Code :

8536.69.40.40

Current :

15A

Number of Rows :

1

Mating Orientation :

Horizontal with Board

Operating Temperature :

-50°C~120°C

Mounting Type :

Through Hole

Number of Contacts :

19

Approval Agency :

CSA, cURus

ECCN Code :

EAR99

Factory Lead Time :

12 Weeks

Screw Thread :

M2.5

Termination :

Screw

Mount :

Through Hole

Published :

2007

Wire Termination :

Screw - Clamping Yoke, Tension Sleeve

Contact Material - Plating :

Copper Alloy - Tin Plated

Hole Diameter :

1.3 mm

Wire Gauge :

14-24 AWG

Wire Gauge (Min) :

14 AWG

Color :

Orange

Packaging :

Bulk

Stripping Length :

6mm

Orientation :

Straight

Number of Levels :

1

Voltage - Rated :

300V

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Number of Ways :

19

Feature :

Interlocking (Side)

Wire Cross Section :

2.5 mm2

Series :

Omnimate LM

Current Rating :

10A

Contact Plating :

Tin

Safety Approval :

UL; CSA

Housing Material :

Thermoplastic, Wemid

Radiation Hardening :

No

Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
