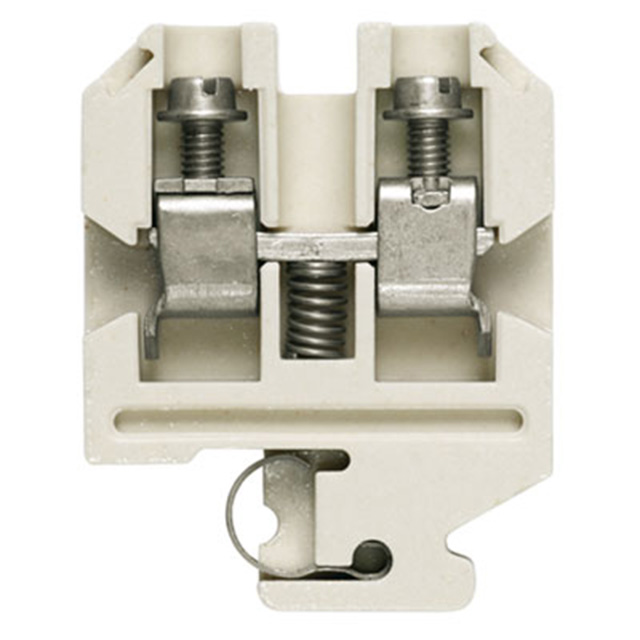

9502610000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Width :

11.5mm

Wire Gauge (Min) :

6 AWG

Approval Agency :

CE, CSA, IEC, UR

Wire Gauge or Range - mm² :

1.5-16mm2

Voltage - IEC :

800V

Radiation Hardening :

No

Type :

Feed Through

Wire Gauge or Range - AWG :

6-14 AWG

Color :

White

Flammability Rating :

UL94 5VB

Length :

40mm

Orientation :

RIGHT ANGLE

Factory Lead Time :

13 Weeks

Current :

50A

Series :

SAK

Termination Style :

Screw

Published :

2002

Wire Gauge (Max) :

14 AWG

Current - UL :

55A

Voltage - Rated :

8kV

Voltage :

600V

Number of Decks :

1

Number of Ways :

2

Stripping Length :

12mm

Material Flammability Rating :

UL94 5VB

Current Rating :

57A

Moisture Sensitivity Level (MSL) :

Not Applicable

ECCN Code :

EAR99

Material :

Ceramic

Height :

53mm

Safety Approval :

UL; CSA

Number of Levels :

1

Number of Positions :

2

Number of Contacts :

2

Mount :

CABLE

Additional Feature :

UL 94V-0

Number of Rows :

1

Lead Free :

Lead Free
