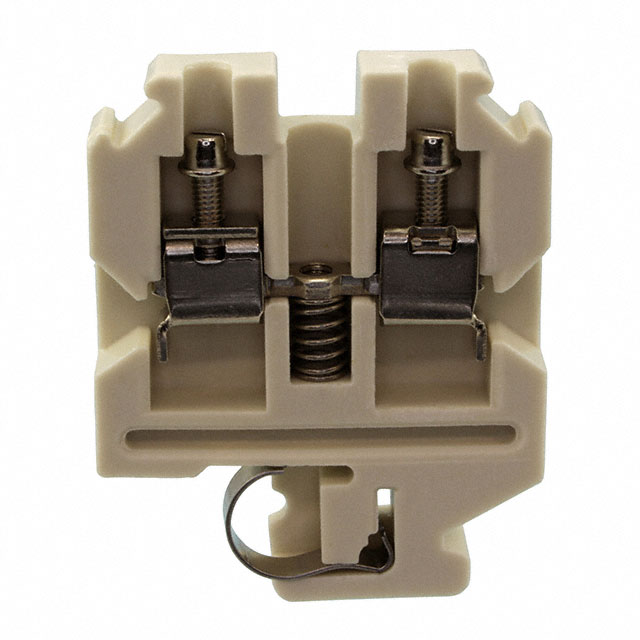

9502600000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Type :

Feed Through

Depth :

8mm

Wire Gauge or Range - mm² :

0.5-6mm2

Lead Free :

Lead Free

Material Flammability Rating :

UL94 5VB

Mount :

CABLE

Width :

8mm

Additional Feature :

UL 94V-0

Number of Ways :

2

Height :

53mm

Voltage - IEC :

800V

Number of Levels :

1

RoHS Status :

RoHS Compliant

Series :

SAK

Max Current Rating :

30A

Pbfree Code :

yes

Voltage - Rated :

8kV

Color :

White

Number of Contacts :

2

Wire Gauge (Max) :

22 AWG

Min Operating Temperature :

-60°C

Max Operating Temperature :

130°C

Published :

2009

Factory Lead Time :

16 Weeks

Termination Style :

Screw

Current Rating :

32A

Material - Insulation :

Ceramic

Wire Gauge (Min) :

10 AWG

Wire/Cable Gauge :

10 AWG

Wire Gauge or Range - AWG :

10-22 AWG

Length :

40mm

Terminal Width :

8.0mm

Safety Approval :

UL; CSA

Stripping Length :

10mm

Number of Decks :

1

Current :

28A

Flammability Rating :

UL94 5VB

Orientation :

RIGHT ANGLE

Housing Material :

Nylon

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Supply Voltage :

600V

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Voltage :

600V

Approval Agency :

CE, CSA, IEC, UR

Radiation Hardening :

No

Current - UL :

30A
