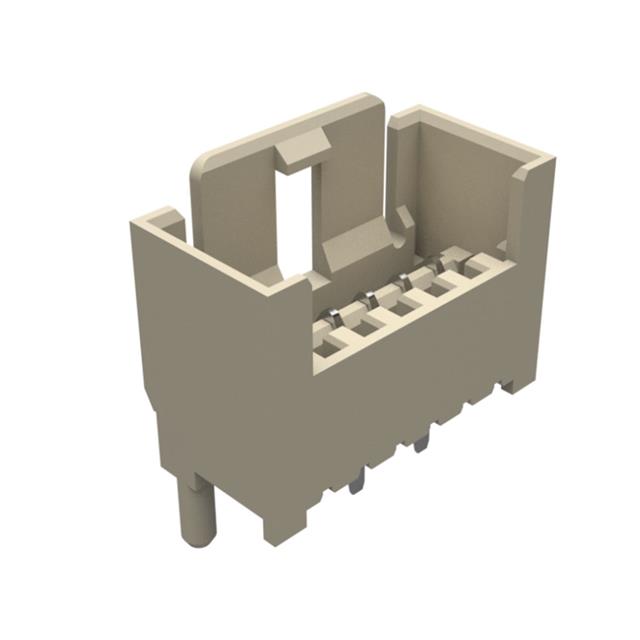

93070-0508
- Mfr.Part #
- 93070-0508
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- RAST 2.5 HDR ASSY 4CKT W/ LTCH
- Stock
- 400
- In Stock :
- 400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Pitch :
- 2.5 mm
- Additional Feature :
- LATCHED
- Filter Feature :
- No
- Mounting Type :
- BOARD
- Product Category :
- Headers and Wire Housings
- Minimum Operating Temperature :
- - 20 C
- Pitch (mm) :
- 2.5(mm)
- Application :
- Power
- Operating Temp Range :
- -20C to 120C
- Number of Terminals :
- 4
- UL Flammability Code :
- 94V-0
- Brand :
- Molex
- Housing Color :
- Natural
- Shell Material :
- GLASS FILLED POLYAMIDE66
- Tradename :
- RAST 2.5
- Product Depth (mm) :
- 9.2(mm)
- Reach Compliance Code :
- Compliant
- Product Length (mm) :
- 14.2(mm)
- Operating Temperature Max Deg. C :
- 120C
- Gender :
- HDR
- Current Rating (Max) :
- 6/Contact(A)
- Option :
- GENERAL PURPOSE
- Subcategory :
- Headers and Wire Housings
- Product Type :
- Headers and Wire Housings
- Type :
- Wire to Board
- Contact Gender :
- Pin (Male)
- Orientation :
- Vertical
- Body Orientation :
- Straight
- Contact Type :
- -
- Flammability :
- 94V-0
- Termination Type :
- Solder
- Termination Post Length :
- 3.3 mm
- Number of Ports :
- 1(Port)
- Series :
- 93070
- Operating Temperature Min Deg. C :
- -20C
- Package :
- Box
- MIL Conformance :
- No
- Mounting Angle :
- Straight
- Contact Plating :
- Tin
- Pbfree Code :
- yes
- Housing Gender :
- -
- Contact Material :
- Brass
- Mounting Style :
- Through Hole
- Product Diameter (mm) :
- Not Required(mm)
- Voltage Rating :
- 32 V
- Number of Positions :
- 4 Position
- Mixed Contacts :
- No
- Packaging :
- Box
- Housing Material :
- Nylon
- Manufacturer :
- Molex
- RoHS :
- Details
- Number of Contact Rows :
- 1
- Termination Method :
- Solder
- Maximum Operating Temperature :
- + 120 C
- Termination Style :
- Solder Pin
- Current Rating :
- 6 A
- Product Status :
- Active
- DIN Conformance :
- No
- Voltage Rating Max :
- 32V
- IEC Conformance :
- No
- Number of Contacts :
- 4(POS)
- Empty Shell :
- No
- Product :
- Headers
- Product Height (mm) :
- 15.3(mm)
- Total Number of Contacts :
- 4
- Number of Rows :
- 1 Row
- Accessory Type :
- -
- Connector Type :
- RECTANGULAR POWER CONNECTOR
- Flammability Rating :
- UL 94 V-0
