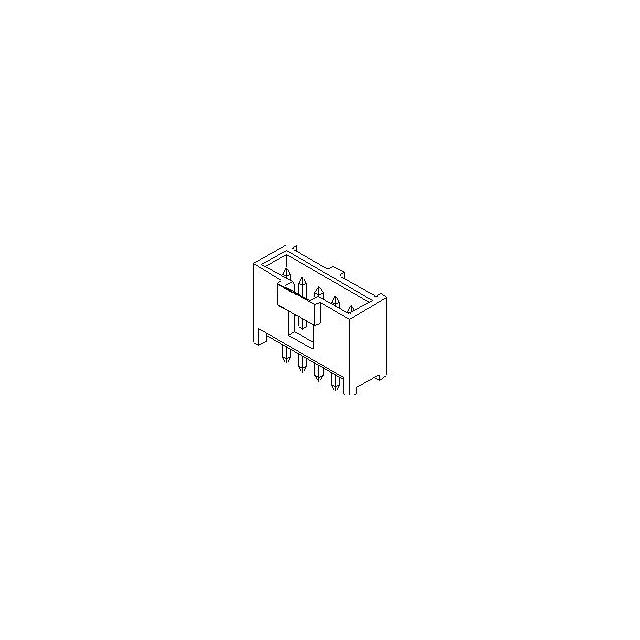

90136-1216
- Mfr.Part #
- 90136-1216
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CGRID SHRD HDR SR VT AUE 16CKT
- Stock
- 2,029
- In Stock :
- 2,029
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Glow Wire Compliant :
- Non-Compliant
- Series :
- C-GRID III
- Contact Type :
- -
- Number of Rows :
- 1
- Termination Post Length :
- 2.9 mm
- Product Height (mm) :
- 10.9(mm)
- Contact Resistance :
- 20 mΩ
- Mating Contact Pitch :
- 0.1 inch
- Body Depth :
- 0.429 inch
- Contact Plating :
- Gold
- Housing Color :
- Black
- Body Orientation :
- Straight
- Min Operating Temperature :
- -55 °C
- Number of Positions :
- 16
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Termination Type :
- Solder
- DIN Conformance :
- No
- Contact Resistance Max :
- 20(mohm)
- Type :
- Shrouded Header
- Mounting Type :
- Through Hole
- Packaging :
- Tray
- Product :
- Headers
- Mounting Style :
- Through Hole
- Voltage Rating Max :
- 350VDC/350VAC
- MIL Conformance :
- No
- Termination :
- Through Hole
- Contact Style :
- SQ PIN-SKT
- ECCN Code :
- EAR99
- Maximum Operating Temperature :
- + 125 C
- Current Rating (Max) :
- 3/Contact(A)
- Brand :
- Molex
- Rated Current (Signal) :
- 3 A
- Accessory Type :
- -
- PCB Contact Pattern :
- RECTANGULAR
- Terminal Length :
- 0.114 inch
- Number of Contacts :
- 16
- Manufacturer :
- Molex
- Voltage Rating :
- 350 V
- Product Status :
- Active
- Terminal Pitch :
- 2.54 mm
- Product Type :
- Headers and Wire Housings
- Termination Method :
- Solder
- Withdrawl Force-Min :
- .199882 N
- Durability :
- 500 Cycles
- Orientation :
- Vertical
- Connector Type :
- BOARD CONNECTOR
- Connector System :
- Wire to Board
- Additional Feature :
- C-GRID III
- Subcategory :
- Headers and Wire Housings
- Contact Pattern :
- RECTANGULAR
- Number Of PCB Rows :
- 1
- Contact Material :
- Brass
- Pitch :
- 2.54 mm
- RoHS :
- Compliant
- IEC Conformance :
- No
- Current Rating :
- 3 A
- Plating :
- Tin
- Product Length (mm) :
- 43.99(mm)
- Pitch (mm) :
- 2.54(mm)
- Pbfree Code :
- yes
- Max Operating Temperature :
- 125 °C
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Contact Gender :
- Pin (Male)
- Mounting Option 1 :
- LOCKING
- Number of Circuits :
- 15
- Package :
- Box
- Total Number of Contacts :
- 16
- Reach Compliance Code :
- Compliant
- Mating Post Length :
- 6.75 mm
- Product Depth (mm) :
- 7.21(mm)
- Number of Contact Rows :
- 1
- Termination Style :
- Solder Pin
- Mounting Angle :
- Straight
- UL Flammability Code :
- 94V-0
- Flammability Rating :
- UL 94 V-0
- HTS Code :
- 8536.69.40.40
- Tradename :
- C-Grid
- Reference Standard :
- UL
- Body Breadth :
- 0.284 inch
- Filter Feature :
- No
- Minimum Operating Temperature :
- - 55 C
- Mixed Contacts :
- No
- Option :
- GENERAL PURPOSE
- Insulator Color :
- Black
- Gender :
- Male
- Operating Temp Range :
- -55C to 125C
- Product Category :
- Headers and Wire Housings
- Country of Origin :
- SK
- Housing Material :
- Polyester
- Application :
- Signal, Wire-to-Board
- Reliability :
- COMMERCIAL
