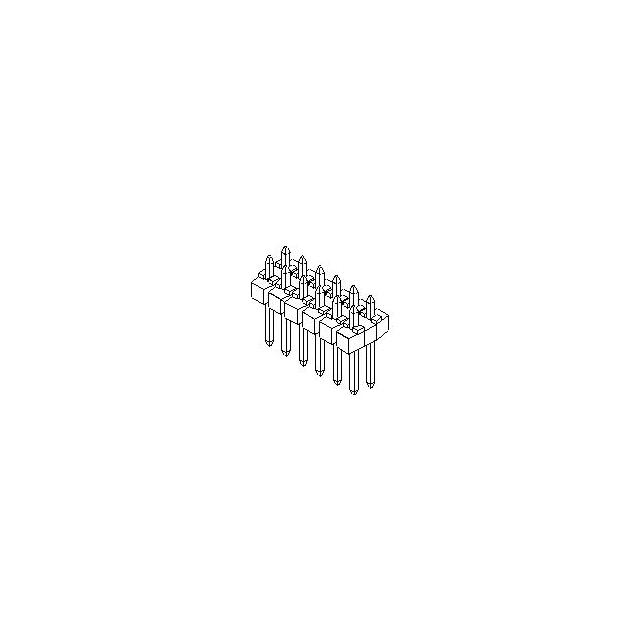

90131-0933

Share

Or copy the link below:

Mfr.Part #
90131-0933
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
CGRID DR VT PN 675290MM AUF 26CK
Stock
46,247
In Stock :
46,247

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Headers, Male Pins
UL Flammability Code :
94V-0
Number Of PCB Rows :
2
Body Orientation :
Straight
PCB Contact Pattern :
RECTANGULAR
Pitch (mm) :
2.54(mm)
Rated Current (Signal) :
3 A
Contact Material :
Brass
ECCN Code :
EAR99
Mixed Contacts :
No
Filter Feature :
No
HTS Code :
8536.69.40.40
Mounting Type :
BOARD
Terminal Length :
0.114 inch
Withdrawl Force-Min :
.1946 N
Dielectric Withstanding Voltage :
350VDC V
IEC Conformance :
No
Current Rating :
3 A
Voltage Rating Max :
350V
Product :
Headers
Pbfree Code :
yes
Orientation :
Vertical
Number of Contact Rows :
2
Termination Type :
Solder
Total Number of Contacts :
26
Product Depth (mm) :
5.08(mm)
Option :
GENERAL PURPOSE
Insertion Force-Max :
.973 N
Pitch :
2.54 mm
Contact Resistance Max :
20(mohm)
Voltage Rating :
350 V
PCB Contact Row Spacing :
2.54 mm
Series :
90131
Package :
Box
Contact Gender :
Pin (Male)
Manufacturer :
Molex
MIL Conformance :
No
Contact Pattern :
RECTANGULAR
Mating Post Length :
6.75 mm
Terminal Pitch :
2.54 mm
JESD-609 Code :
e3
Gender :
HDR
Contact Type :
-
Mounting Style :
Through Hole
Plating Thickness :
30u inch
Contact Resistance :
20 mΩ
Number of Positions :
26 Position
DIN Conformance :
No
Contact Style :
SQ PIN-SKT
Contact Finish Termination :
TIN OVER NICKEL
Application :
Signal
Connector Type :
BOARD CONNECTOR
Tradename :
C-Grid
Current Rating (Max) :
3/Contact(A)
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Termination Post Length :
2.9 mm
Termination Style :
Solder Pin
Reference Standard :
UL
Additional Feature :
C-GRID III
Body Breadth :
0.2 inch
Housing Material :
Polyester
Body Depth :
0.098 inch
Number of Contacts :
26(POS)
RoHS :
Details
Insulation Resistance :
5000000000 Ω
Product Category :
Headers and Wire Housings
Product Length (mm) :
33.02(mm)
Body/Shell Style :
Receptacle
Reliability :
COMMERCIAL
Reach Compliance Code :
Compliant
Housing Color :
Black
Operating Temp Range :
-55C to 125C
Mating Contact Row Spacing :
0.1 inch
Brand :
Molex
Product Status :
Active
Number of Rows :
2 Row
Subcategory :
Headers and Wire Housings
Accessory Type :
-
Insulator Color :
Black
Contact Plating :
Gold Over Nickel
Mounting Angle :
Straight
Packaging :
Tray
Minimum Operating Temperature :
- 55 C
Row Spacing :
2.54 mm
Mating Contact Pitch :
0.1 inch
Product Type :
Headers and Wire Housings
Product Height (mm) :
9.25(mm)
Termination Method :
Solder
Maximum Operating Temperature :
+ 125 C
Type :
Unshrouded Header
