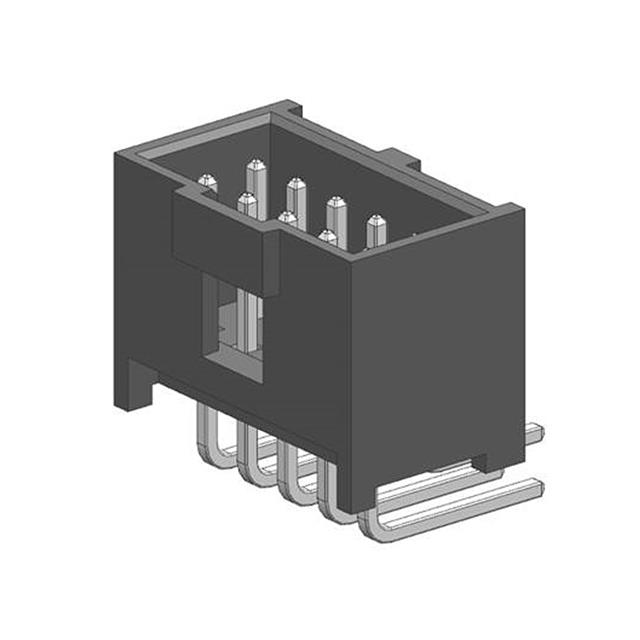

90130-3138
- Mfr.Part #
- 90130-3138
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CGRID SHRD HDR DR RA TNA 3838
- Stock
- 394
- In Stock :
- 394
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Product Length (mm) :
- 50.98(mm)
- Number of Positions :
- 38
- Rated Current (Signal) :
- 3 A
- Plating Thickness :
- 118u inch
- Termination :
- Solder
- Mounting Style :
- Through Hole
- Termination Type :
- Solder
- Termination Style :
- Solder Pin
- Connector Type :
- BOARD CONNECTOR
- UL Flammability Code :
- 94V-0
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Glow Wire Compliant :
- Non-Compliant
- Type :
- Shrouded Header
- Pitch (mm) :
- 2.54(mm)
- Gender :
- Header
- Insertion Force-Max :
- 3.0024 N
- Pitch :
- 2.5400 mm
- Number of Contact Rows :
- 2
- Mating Post Length :
- 6.75 mm
- Reference Standard :
- UL
- Number Of PCB Rows :
- 2
- Subcategory :
- Headers and Wire Housings
- Contact Style :
- SQ PIN-SKT
- Insulation Resistance :
- 5000000000 Ω
- Termination Post Length :
- 2.9 mm
- DIN Conformance :
- No
- Additional Feature :
- SHROUDED
- Tradename :
- C-Grid
- Product Status :
- Active
- Mounting Option 1 :
- LOCKING
- Product :
- Headers
- Product Length :
- 50.98 mm
- Filter Feature :
- No
- Contact Type :
- -
- Operating Temp Range :
- -55C to 125C
- Body Orientation :
- RIGHT ANGLE
- Number of Contacts :
- 38(POS)
- ECCN Code :
- EAR99
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 700VAC V
- Current Rating (Max) :
- 3/Contact(A)
- Orientation :
- RIGHT ANGLE
- PCB Contact Row Spacing :
- 2.54 mm
- Row Spacing :
- 2.54 mm
- Mounting Type :
- BOARD
- Accessory Type :
- -
- Contact Plating :
- Tin-Lead
- PCB Contact Pattern :
- RECTANGULAR
- Minimum Operating Temperature :
- - 55 C
- Option :
- GENERAL PURPOSE
- Contact Pattern :
- RECTANGULAR
- Durability :
- 500 Cycles
- Voltage Rating :
- 350 V
- MIL Conformance :
- No
- Contact Material :
- Brass
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 20 mΩ
- REACH SVHC :
- No SVHC
- Product Type :
- Headers and Wire Housings
- Factory Lead Time :
- 8 Weeks
- Manufacturer :
- Molex
- Reach Compliance Code :
- Compliant
- Flammability Rating :
- UL 94 V-0
- Packaging :
- Tray
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Body Depth :
- 0.515 inch
- IEC Conformance :
- No
- Flammability :
- 94V-0
- RoHS :
- Compliant
- Base/Housing Material :
- Polyester
- Radiation Hardening :
- No
- Number of Circuits :
- 38
- Plating :
- Tin
- Total Number of Contacts :
- 38
- Housing Material :
- Polyester
- Product Depth (mm) :
- 9.75(mm)
- Terminal Pitch :
- 2.54 mm
- Product Category :
- Headers and Wire Housings
- Insulator Color :
- Black
- Mating Information :
- 90142-0038
- Package :
- Box
- Termination Method :
- Solder
- Country of Origin :
- SK
- Operating Temperature :
- -55 to 125 °C
- Mounting Angle :
- RIGHT ANGLE
- Mixed Contacts :
- No
- Contact Gender :
- Pin (Male)
- Product Height (mm) :
- 10.9(mm)
- Application :
- Signal
- Mating Contact Pitch :
- 0.1 inch
- Series :
- 90130
- Body Breadth :
- 0.384 inch
- Pbfree Code :
- yes
- Voltage Rating Max :
- 350VDC/350VAC
- Brand :
- Molex
- Current Rating :
- 3 A
- Terminal Length :
- 0.114 inch
- Maximum Operating Temperature :
- + 125 C
- Mounting :
- Through Hole
- Mating Contact Row Spacing :
- 0.1 inch
- Body/Shell Style :
- Receptacle
- Housing Color :
- Black
- HTS Code :
- 8536.69.40.40
