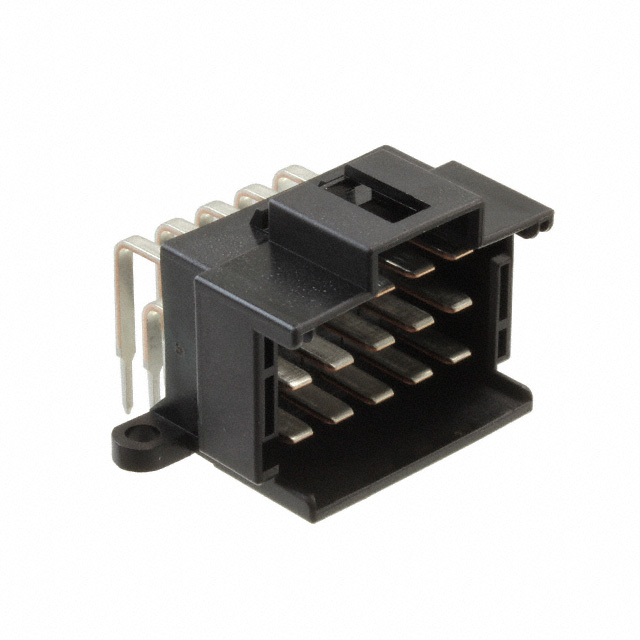

9-966140-2
Or copy the link below:
- Mfr.Part #
- 9-966140-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 15POS 5MM
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Housing Color :
- Black
- Contact Finish - Mating :
- Tin
- Factory Lead Time :
- 11 Weeks
- Applications :
- Automotive, General Purpose
- Width - Tab :
- 2.8mm
- Insulation Height :
- 1.012 25.70mm
- Contact Material :
- COPPER ALLOY
- ECCN Code :
- EAR99
- Published :
- 2011
- Row Spacing - Mating :
- 0.217 (5.51mm)
- Radiation Hardening :
- No
- Width :
- 20.0914mm
- Shrouding :
- Shrouded - 4 Wall
- Number of Ports :
- 1
- Flammability Rating :
- UL94 HB
- REACH SVHC :
- No SVHC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- ELV :
- Compliant
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Contact Type :
- Tab
- Mount :
- Through Hole
- Number of Positions :
- 15
- Contact Gender :
- Male
- Feature :
- Mounting Flange
- Packaging :
- Tray
- Contact Length - Post :
- 0.118 3.00mm
- Shielding :
- Unshielded
- Number of Rows :
- 3
- Mounting Type :
- Through Hole, Right Angle
- Fastening Type :
- Latch Holder
- Series :
- Junior Power Timer
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Contact Shape :
- RECTANGULAR
- Connector Type :
- Header
- Operating Temperature :
- -40°C~100°C
- Orientation :
- RIGHT ANGLE
- Lead Free :
- Lead Free
- Tab Thickness :
- 800μm
- Circuit Application :
- Signal
- Termination :
- Solder
- Length :
- 41.00068mm
- Style :
- Board to Board or Cable
- Housing Material :
- Polyamide
- Pitch - Mating :
- 0.197 5.00mm
- Datasheets
- 9-966140-2
Junior Power Timer Series 3-Row Header Solder Copper Alloy Tray Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6, Glass Filled 15-Position Board to Board or Cable 1.012 25.70mm Height
9-966140-2 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Junior Power Timer Series.With 1 ports, it is capable of managing a wide range of tasks.There is the possibility of using the device for Automotive, General Purpose.In many ways, Mounting Flange makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~100°C.
9-966140-2 Features
Junior Power Timer series
9-966140-2 Applications
There are a lot of TE Connectivity AMP Connectors
9-966140-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
