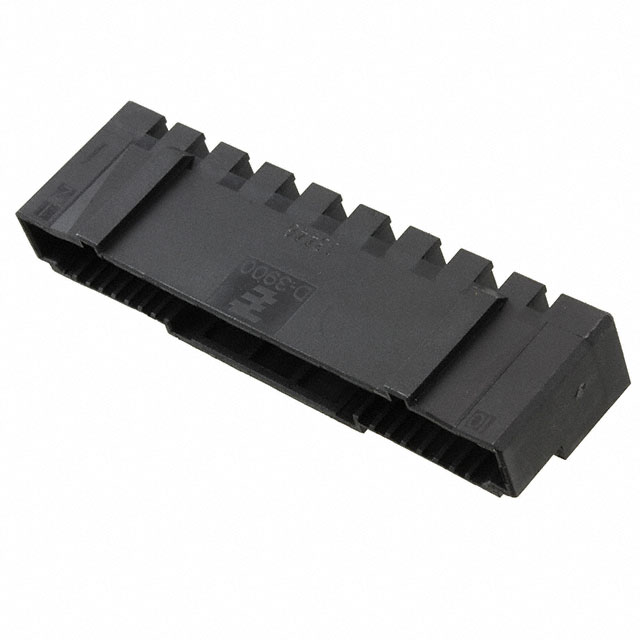

9-2013519-0
Or copy the link below:
- Mfr.Part #
- 9-2013519-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 7.5MM
- Stock
- 192
- In Stock ：
- 192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Retention :
- Without
- Gender :
- Male
- Length :
- 75.692mm
- Mating Retention :
- With
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polyester
- Termination :
- Solder
- Mating Alignment :
- With
- PCB Mount Retention :
- With
- Sealable :
- No
- Connector Type :
- Header, Plug, Tab
- Orientation :
- RIGHT ANGLE
- Operating Supply Voltage :
- 300V
- Number of Contacts :
- 7
- Number of Positions :
- 10
- PCB Thickness :
- 1.6002mm
- Halogen Free :
- Halogen Free
- Contact Rating (Current) :
- 14.5A
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Current Rating :
- 14.5A
- Pitch :
- 7.493mm
- Shielding :
- Unshielded
- PCB Mounting Orientation :
- RIGHT ANGLE
- Length - Tail :
- 3.8mm
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold
- Width :
- 20.9mm
- VDE Tested :
- No
- ELV :
- Compliant
- Height :
- 13mm
- Housing Color :
- Black
- Preloaded :
- yes
- Mount :
- Through Hole
- Datasheets
- 9-2013519-0
1-Row Header, Plug, Tab Solder 10-Position
9-2013519-0 Overview
The packaging is Header, Plug, Tab.Mounted by Through Hole.In this memory, the operating supply voltage is 300V.
9-2013519-0 Features
9-2013519-0 Applications
There are a lot of TE Connectivity / AMP
9-2013519-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
