9-146282-0-03
Or copy the link below:
- Mfr.Part #
- 9-146282-0-03
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 100
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 384
- In Stock ：
- 384
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Style :
- Board to Board or Cable
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Fastening Type :
- Push-Pull
- Pitch :
- 2.54mm
- Operating Temperature :
- -65°C~105°C
- Contact Plating :
- Tin
- Contact Finish - Mating :
- Tin
- Overall Contact Length :
- 0.410 10.41mm
- Length :
- 7.21mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2011
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Lead Free :
- Lead Free
- Contact Finish - Post :
- Tin
- Color :
- Black
- Insulation Color :
- Black
- Housing Material :
- Plastic
- Connector Type :
- Header, Breakaway
- RoHS Status :
- RoHS Compliant
- Width :
- 2.34mm
- Gender :
- Male
- Contact Length - Mating :
- 0.230 5.84mm
- Height :
- 2.29mm
- Lead Pitch :
- 2.54mm
- Current Rating (Amps) :
- 3A
- Shrouding :
- Unshrouded
- Number of Contacts :
- 3
- Number of Rows :
- 1
- Contact Shape :
- Square
- Contact Length - Post :
- 0.090 2.29mm
- Number of Positions :
- 3
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Mount :
- Through Hole
- Packaging :
- Bulk
- Package / Case :
- 100
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Male Pin
- Insulation Height :
- 0.090 2.29mm
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Series :
- AMPMODU Mod II
- Pitch - Mating :
- 0.100 2.54mm
- Housing Color :
- Black
- Datasheets
- 9-146282-0-03

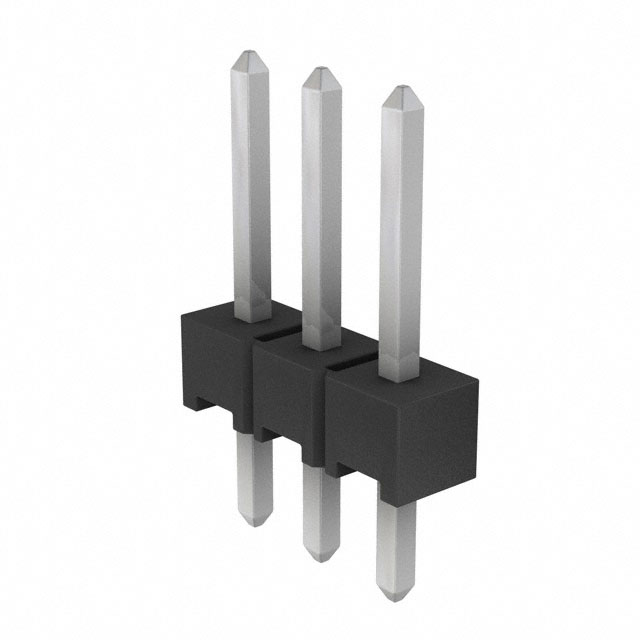

AMPMODU Mod II Series 1-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Tin Liquid Crystal Polymer (LCP) 3-Position Board to Board or Cable 0.090 2.29mm Height
9-146282-0-03 Overview
The product is packaged in Header, Breakaway.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod II Series.100 indicates that the package contains an enclosed device.Part Through Hole is mounted to the part.As a result, the device runs at -65°C~105°C Operating Temperature.
9-146282-0-03 Features
AMPMODU Mod II series
9-146282-0-03 Applications
There are a lot of TE Connectivity AMP Connectors
9-146282-0-03 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
