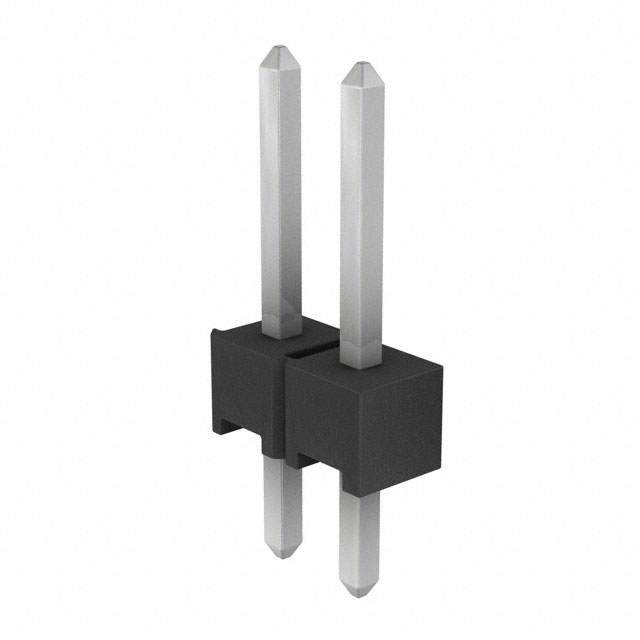

9-146258-0-01
Or copy the link below:
- Mfr.Part #
- 9-146258-0-01
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 100
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 3,968
- In Stock ：
- 3,968
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Push-Pull
- Number of Positions :
- 2
- Housing Color :
- Black
- Contact Shape :
- Square
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Package / Case :
- 100
- Lead Pitch :
- 2.54mm
- Shrouding :
- Unshrouded
- Series :
- AMPMODU Mod II
- Length :
- 2.13mm
- Color :
- Black
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Gender :
- Male
- Contact Material :
- COPPER ALLOY
- Overall Contact Length :
- 0.410 10.41mm
- Contact Plating :
- Tin
- Height :
- 2.29mm
- Connector Type :
- Header, Breakaway
- Operating Temperature :
- -65°C~105°C
- Current Rating (Amps) :
- 3A
- Contact Finish - Mating :
- Tin
- Published :
- 2011
- Contact Type :
- Male Pin
- Pitch :
- 2.54mm
- Contact Length - Mating :
- 0.230 5.84mm
- Contact Length - Post :
- 0.090 2.29mm
- Insulation Color :
- Black
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Width :
- 4.88mm
- Insulation Height :
- 0.090 2.29mm
- Number of Rows :
- 2
- Style :
- Board to Board or Cable
- Number of Contacts :
- 2
- Housing Material :
- Plastic
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 9-146258-0-01
AMPMODU Mod II Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Tin Liquid Crystal Polymer (LCP) 2-Position Board to Board or Cable 0.090 2.29mm Height
9-146258-0-01 Overview
The packaging contains Header, Breakaway.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number AMPMODU Mod II belongs to the AMPMODU Mod II Series.Packaging with 100 contains a device.There is a Through Hole mount on the part.This device operates at a temperature of -65°C~105°C.
9-146258-0-01 Features
AMPMODU Mod II series
9-146258-0-01 Applications
There are a lot of TE Connectivity AMP Connectors
9-146258-0-01 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
