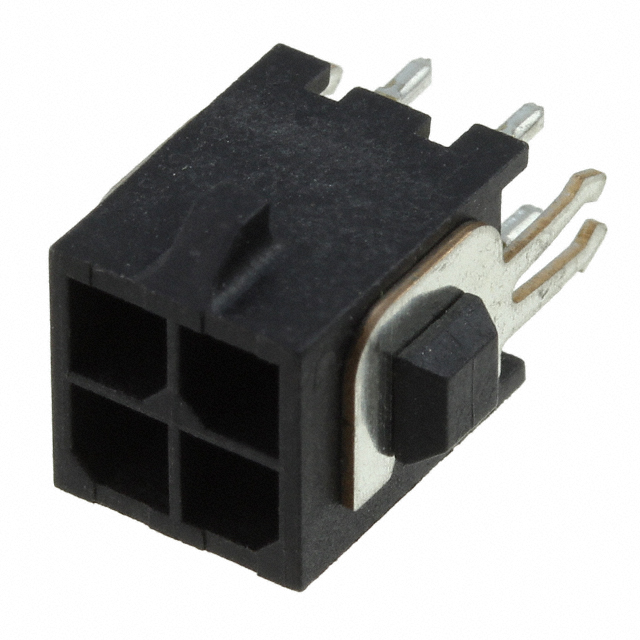

794680-4
Or copy the link below:
- Mfr.Part #
- 794680-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3MM
- Stock
- 40,502
- In Stock ：
- 40,502
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Housing Material :
- Nylon
- Termination :
- Solder
- Operating Temperature :
- -40°C~105°C
- Mount :
- Through Hole
- Style :
- Board to Cable/Wire
- Contact Finish - Post :
- Tin-Lead
- Contact Plating :
- Lead, Tin
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Tin-Lead
- Orientation :
- Straight
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.118 3.00mm
- Factory Lead Time :
- 11 Weeks
- Number of Contacts :
- 4
- Contact Material :
- Brass
- Mounting Type :
- Through Hole
- Insulation Material :
- Polyamide (PA), Nylon
- Lead Free :
- Contains Lead
- Feature :
- Board Lock
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Pitch :
- 3mm
- Applications :
- GENERAL PURPOSE
- Connector Type :
- Header
- Packaging :
- Tray
- Number of Rows :
- 2
- Lead Length :
- 3.18mm
- Fastening Type :
- Locking Ramp
- Current Rating :
- 5A
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Radiation Hardening :
- No
- Published :
- 2009
- Number of Positions :
- 4
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Shape :
- Square
- RoHS Status :
- Non-RoHS Compliant
- Series :
- Micro MATE-N-LOK
- Voltage - Rated :
- 250V
- Contact Length - Post :
- 0.125 3.18mm
- ELV :
- Non-Compliant
- Current Rating (Amps) :
- Varies by WireGAuge
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Insulation Color :
- Black
- Insulation Height :
- 0.364 9.25mm
- Datasheets
- 794680-4
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin-Lead Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.364 9.25mm Height
794680-4 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Micro MATE-N-LOK Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.
794680-4 Features
Micro MATE-N-LOK series
794680-4 Applications
There are a lot of TE Connectivity AMP Connectors
794680-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
