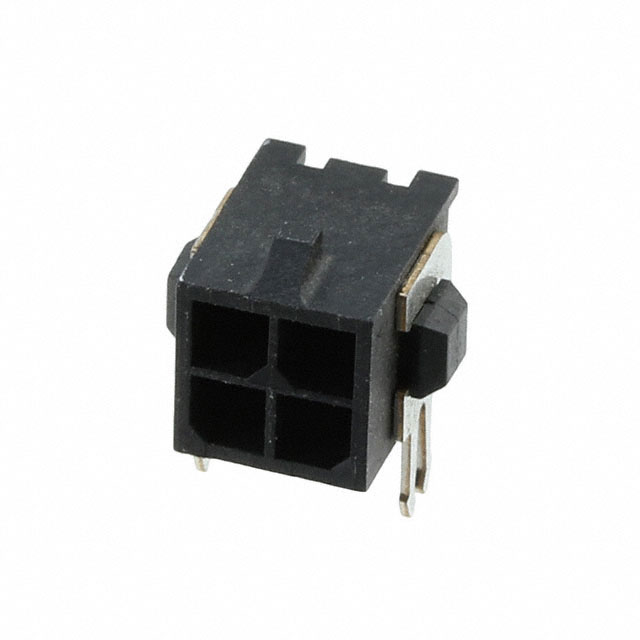

794679-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Empty Shell :

No

MIL Conformance :

No

Housing Color :

Black

Max Voltage Rating (AC) :

250V

Number of Ports :

1

JESD-609 Code :

e0

Contact Finish Thickness - Post :

100.0μin 2.54μm

Current Rating :

5A

Contact Shape :

Square

Number of Positions Loaded :

All

Number of Positions :

4

DIN Conformance :

No

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.290 7.37mm

Number Of PCB Rows :

2

Packaging :

Tray

Contact Type :

Male Pin

RoHS Status :

Non-RoHS Compliant

Series :

Micro MATE-N-LOK

Reliability :

COMMERCIAL

Radiation Hardening :

No

Contact Material :

Brass

Plating Thickness :

30μin

Contact Finish - Post :

Tin-Lead

Orientation :

RIGHT ANGLE

Polarization Key :

POLARIZED HOUSING

Connector Type :

Header

Fastening Type :

Locking Ramp

Feature :

Board Lock

Shrouding :

Shrouded - 4 Wall

Published :

2008

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Contains Lead

Applications :

GENERAL PURPOSE

ELV :

Non-Compliant

Pbfree Code :

No

Operating Temperature :

-40°C~105°C

Reference Standard :

UL, CSA

Number of Rows :

2

Mount :

Through Hole

Termination :

Solder

Depth :

11.92mm

Current Rating (Amps) :

Varies by WireGAuge

Length :

10mm

Lead Length :

3.18mm

Housing Material :

Nylon

Factory Lead Time :

11 Weeks

Number of Conductors :

ONE

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

Insulation Material :

Polyamide (PA), Nylon

Total Number of Contacts :

4

Row Spacing - Mating :

0.118 (3.00mm)

Contact Finish Thickness - Mating :

30.0μin 0.76μm

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Filter Feature :

No

Style :

Board to Cable/Wire

Pitch - Mating :

0.118 3.00mm
