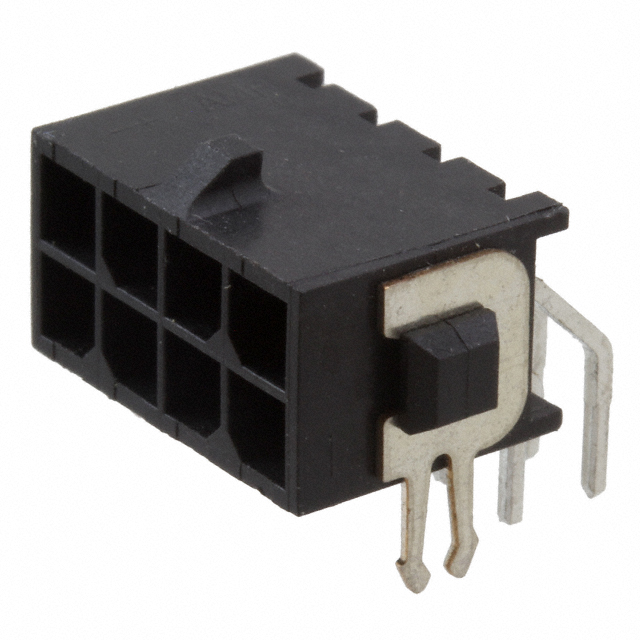

794677-8
Or copy the link below:
- Mfr.Part #
- 794677-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 3MM
- Stock
- 33,687
- In Stock ：
- 33,687
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Polarization Key :
- POLARIZED HOUSING
- Contact Pattern :
- RECTANGULAR
- Connector Type :
- COMBINATION LINE CONNECTOR
- Shell Material :
- Nylon
- Mounting Type :
- BOARD
- Contact Material :
- Brass
- Insertion Force-Max :
- 6.672 N
- Termination Type :
- Solder
- Additional Feature :
- MATE-N-LOK
- Body/Shell Style :
- PLUG
- ECCN Code :
- EAR99
- Number Of PCB Rows :
- 2
- Total Number of Contacts :
- 8
- JESD-609 Code :
- e0
- UL Flammability Code :
- 94V-0
- HTS Code :
- 8536.69.40.30
- Filter Feature :
- No
- Mating Contact Pitch :
- 0.118 inch
- Plating Thickness :
- 100u inch
- Body Breadth :
- 0.341 inch
- Insulation Resistance :
- 100000000 Ω
- Body Depth :
- 0.469 inch
- Contact Style :
- SQ PIN-SKT
- Reliability :
- COMMERCIAL
- Contact Gender :
- Male
- Reach Compliance Code :
- Compliant
- Terminal Pitch :
- 2.9972 mm
- Withdrawl Force-Min :
- .695 N
- Insulator Color :
- Black
- DIN Conformance :
- No
- Mounting Option 1 :
- LOCKING
- Dielectric Withstanding Voltage :
- 1500VAC V
- Contact Finish Termination :
- TIN LEAD
- PCB Contact Pattern :
- RECTANGULAR
- Terminal Length :
- 0.118 inch
- Empty Shell :
- No
- Durability :
- 30 Cycles
- Board Mounting Option :
- SPLIT BOARD LOCK
- PCB Contact Row Spacing :
- 2.9972 mm
- Reference Standard :
- UL
- Mounting Style :
- RIGHT ANGLE
- IEC Conformance :
- No
- Mating Contact Row Spacing :
- 0.118 inch
- Pbfree Code :
- No
- Datasheets
- 794677-8
