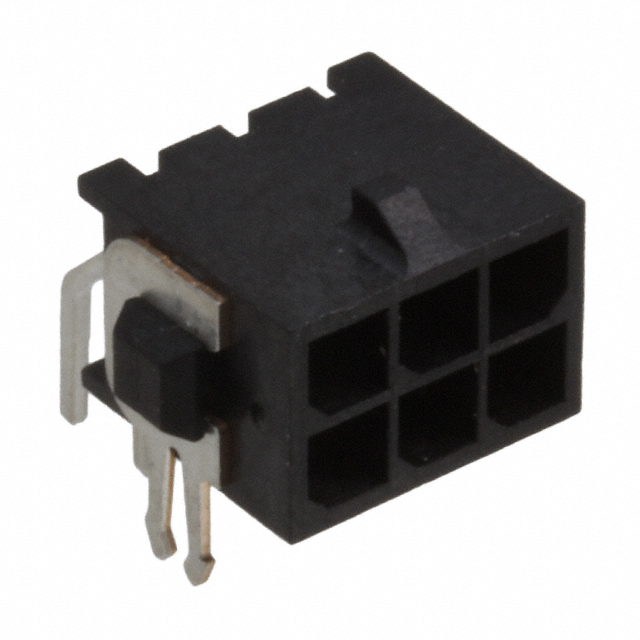

794677-6
Or copy the link below:
- Mfr.Part #
- 794677-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 3MM
- Stock
- 43,152
- In Stock ：
- 43,152
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 6
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Insulation Height :
- 0.290 7.37mm
- Number of Contacts :
- 6
- Mount :
- Through Hole
- Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- ELV :
- Non-Compliant
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Factory Lead Time :
- 11 Weeks
- Radiation Hardening :
- No
- Contact Shape :
- Square
- Feature :
- Board Lock
- Orientation :
- RIGHT ANGLE
- Contact Finish - Post :
- Tin-Lead
- Operating Temperature :
- -40°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 3mm
- Insulation Material :
- Polyamide (PA), Nylon
- Fastening Type :
- Locking Ramp
- Voltage - Rated :
- 250V
- Packaging :
- Tray
- Pitch - Mating :
- 0.118 3.00mm
- Connector Type :
- Header
- Lead Free :
- Contains Lead
- Contact Finish - Mating :
- Tin-Lead
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Nylon
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- Applications :
- GENERAL PURPOSE
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Black
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Current Rating (Amps) :
- Varies by WireGAuge
- Published :
- 2008
- Series :
- Micro MATE-N-LOK
- Contact Plating :
- Lead, Tin
- Lead Length :
- 3.18mm
- Housing Color :
- Black
- Current Rating :
- 5A
- Datasheets
- 794677-6
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Tin-Lead Polyamide (PA), Nylon 6-Position Board to Cable/Wire 0.290 7.37mm Height
794677-6 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the Micro MATE-N-LOK Series.The device could be used for the following application: General Purpose.There are a number of advantages to its Board Lock feature.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~105°C Operating Temperature.
794677-6 Features
Micro MATE-N-LOK series
794677-6 Applications
There are a lot of TE Connectivity AMP Connectors
794677-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
