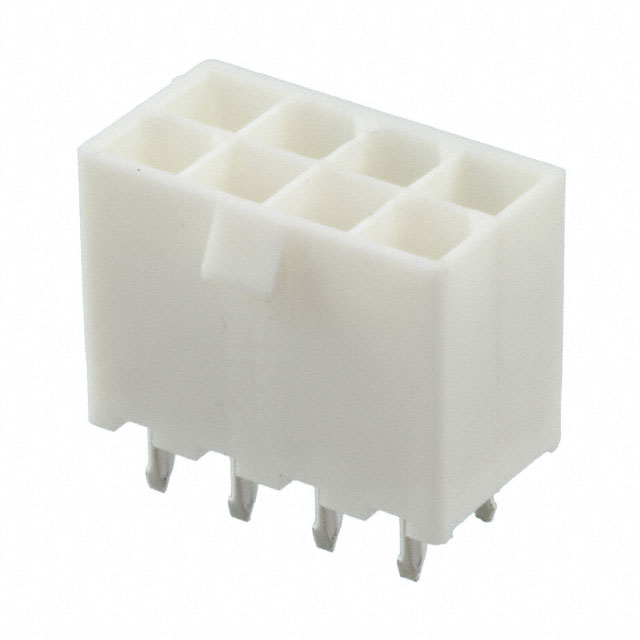

794668-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Number of Signal Positions :

8

Style :

Board to Board or Cable

Lead Free :

Contains Lead

Mount :

Through Hole

Series :

AMP-DUAC

Number of Positions Loaded :

All

Housing Material :

Nylon

Voltage - Rated :

600VAC

Terminal Pitch :

4.191mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~105°C

PCB Contact Pattern :

RECTANGULAR

Insulation Material :

Polyamide (PA), Nylon

Material Flammability Rating :

UL94 V-0

Published :

2003

Number of Conductors :

ONE

Reference Standard :

UL

Current Rating :

9A

Flammability Rating :

UL94 V-0

Contact Resistance :

10MOhm

Contact Type :

Male Pin

Contact Material :

COPPER ALLOY

Rated Current (Signal) :

9A

Pitch - Mating :

0.165 4.20mm

PCB Contact Row Spacing :

4.191 mm

Termination :

Solder

Packaging :

Bulk

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Height :

12.8mm

Factory Lead Time :

6 Weeks

PCB Mounting Orientation :

Vertical

Connector Type :

Header

Insulation Height :

0.504 12.80mm

Contact Finish - Mating :

Tin-Lead

Insulation Color :

White

Number Of PCB Rows :

2

Contact Length - Post :

0.138 3.50mm

Reliability :

COMMERCIAL

Fastening Type :

Locking Ramp

Number of Rows :

2

ELV :

Non-Compliant

Shrouding :

Shrouded - 4 Wall

RoHS Status :

Non-RoHS Compliant

Length :

18mm

Insulation Resistance :

1000000000Ohm

Mating Contact Pitch :

0.165 inch

Dielectric Withstanding Voltage :

1500VAC V

Contact Shape :

Square

Width :

10mm

Mounting Type :

Through Hole

Reach Compliance Code :

Unknown

Row Spacing - Mating :

0.165 (4.20mm)

Contact Plating :

Lead, Tin
