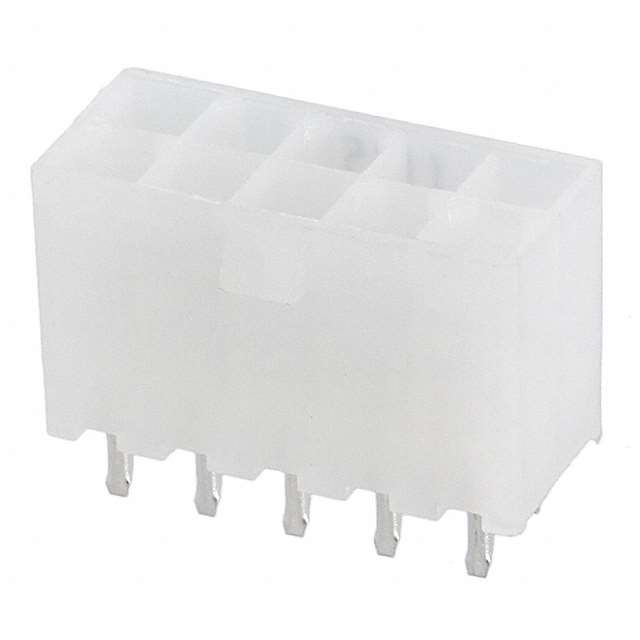

794487-1
Or copy the link below:
- Mfr.Part #
- 794487-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 4.2MM
- Stock
- 4,249
- In Stock ：
- 4,249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Lead Free :
- Contains Lead
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.165 4.20mm
- Material Flammability Rating :
- UL94 V-0
- Series :
- AMP-DUAC
- Published :
- 2006
- Factory Lead Time :
- 6 Weeks
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -55°C~105°C
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- DIN Conformance :
- No
- Connector Type :
- Header
- Filter Feature :
- No
- Insulation Height :
- 0.504 12.80mm
- Contact Finish - Mating :
- Tin-Lead
- Housing Material :
- Nylon
- Number of Rows :
- 2
- PCB Mounting Orientation :
- Vertical
- Style :
- Board to Board or Cable
- Number of Signal Positions :
- 10
- Width :
- 10mm
- MIL Conformance :
- No
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Termination :
- Solder
- IEC Conformance :
- No
- Housing Color :
- White
- Current Rating :
- 9A
- Mount :
- Through Hole
- Fastening Type :
- Locking Ramp
- Contact Material :
- COPPER ALLOY
- Contact Shape :
- Square
- RoHS Status :
- Non-RoHS Compliant
- Radiation Hardening :
- No
- ELV :
- Non-Compliant
- Insulation Material :
- Polyamide (PA), Nylon
- JESD-609 Code :
- e0
- Contact Length - Post :
- 0.138 3.50mm
- Voltage - Rated :
- 600VAC
- Contact Plating :
- Lead, Tin
- Mixed Contacts :
- No
- Insulation Color :
- Natural
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Datasheets
- 794487-1
AMP-DUAC Series 2-Row Header Solder Copper Alloy Bulk Through Hole Tin-Lead Polyamide (PA), Nylon Board to Board or Cable 0.504 12.80mm Height
794487-1 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMP-DUAC Series.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.
794487-1 Features
AMP-DUAC series
794487-1 Applications
There are a lot of TE Connectivity AMP Connectors
794487-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
