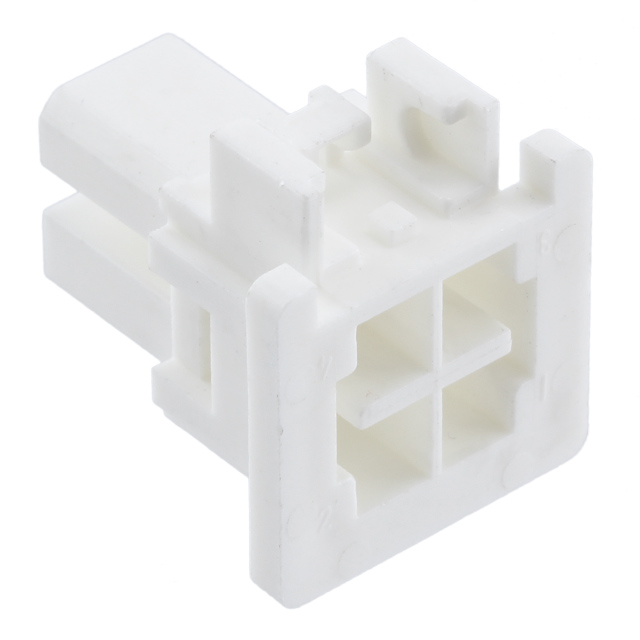

794152-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mixed Contacts :

No

Connector Type :

Receptacle, Socket

Current Rating :

9A

Flammability Rating :

UL94 V-0

Housing Material :

Nylon

Contact Style :

SQ PIN-SKT

Dielectric Withstanding Voltage :

1800VDC V

Number of Conductors :

ONE

Termination :

Crimp

DIN Conformance :

No

ECCN Code :

EAR99

Pitch :

4.2mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Cable, Free Hanging

Insulation Resistance :

1000000Ohm

Number of Positions :

4

Total Number of Contacts :

4

Shell Material :

POLYBUTYLENE TEREPHTHALATE

Operating Temperature (Max) :

105°C

Number of Rows :

2

Operating Temperature (Min) :

-55°C

Reference Standard :

UL

Gender :

FEMALE

Packaging :

Bulk

Color :

Natural

Filter Feature :

No

Reliability :

COMMERCIAL

Orientation :

Straight

Length :

15.86mm

Contact Material :

NOT SPECIFIED

Option :

GENERAL PURPOSE

MIL Conformance :

No

Pbfree Code :

yes

IEC Conformance :

No

RoHS Status :

RoHS Compliant

Housing Color :

White

Body Depth :

0.771 inch

ELV :

Compliant

Empty Shell :

No

Contact Finish - Mating :

NOT SPECIFIED
