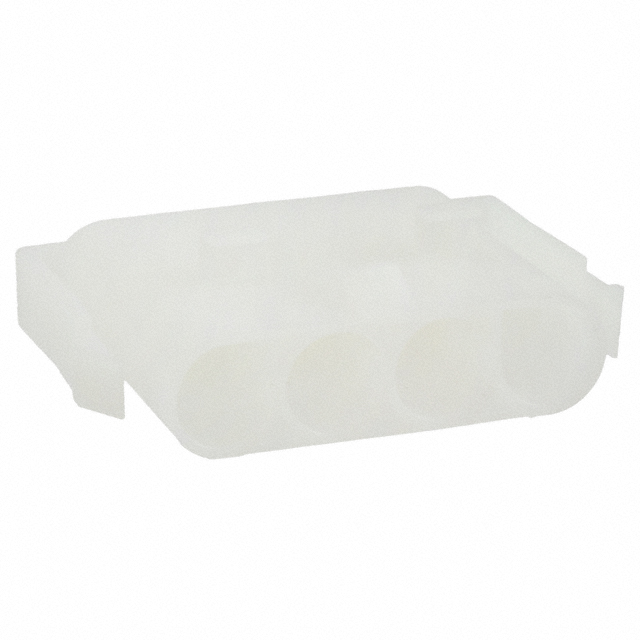

794118-1
Or copy the link below:
- Mfr.Part #
- 794118-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 4POS 9.91MM
- Stock
- 14,750
- In Stock ：
- 14,750
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Mixed Contacts :
- No
- Length :
- 30.988mm
- Flammability Rating :
- UL94 V-2
- Empty Shell :
- No
- Contact Retention :
- Without
- Total Number of Contacts :
- 4
- Pitch :
- 0.390 9.91mm
- Connector Type :
- Receptacle
- Factory Lead Time :
- 4 Weeks
- Filter Feature :
- No
- Published :
- 1999
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Natural
- DIN Conformance :
- No
- Max Operating Temperature :
- 221°C
- Depth :
- 30.99mm
- IEC Conformance :
- No
- Orientation :
- Straight
- Option :
- GENERAL PURPOSE
- Max Voltage Rating (AC) :
- 600V
- Min Operating Temperature :
- -67°C
- Lead Free :
- Lead Free
- Fastening Type :
- Locking Ramp
- Housing Material :
- Nylon
- Packaging :
- Bulk
- Contact Type :
- Male Pin
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mount :
- Panel
- Number of Positions :
- 4
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Operating Supply Voltage :
- 600V
- Number of Rows :
- 1
- Contact Termination :
- Crimp
- Pbfree Code :
- yes
- Height :
- 46.99mm
- Width :
- 7.62mm
- MIL Conformance :
- No
- Note :
- Contacts Not Included
- ELV :
- Compliant
- Series :
- MATE-N-LOK
- Shell Material :
- Polyamide
- Contact Gender :
- FEMALE
- Mounting Type :
- Panel Mount, Snap-In
- Datasheets
- 794118-1
1 Rows Receptacle Bulk Natural 4 Positions Panel Mount, Snap-In Male Pin Crimp MATE-N-LOK Nylon
794118-1 Overview
A Receptacle packaging is included.It's mounted Panel Mount, Snap-In.We use a Bulk case to package the product.It's from the MATE-N-LOK Series.It's mounted by Panel.Operating voltage is 600V.
794118-1 Features
MATE-N-LOK series
794118-1 Applications
There are a lot of TE Connectivity AMP Connectors
794118-1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
