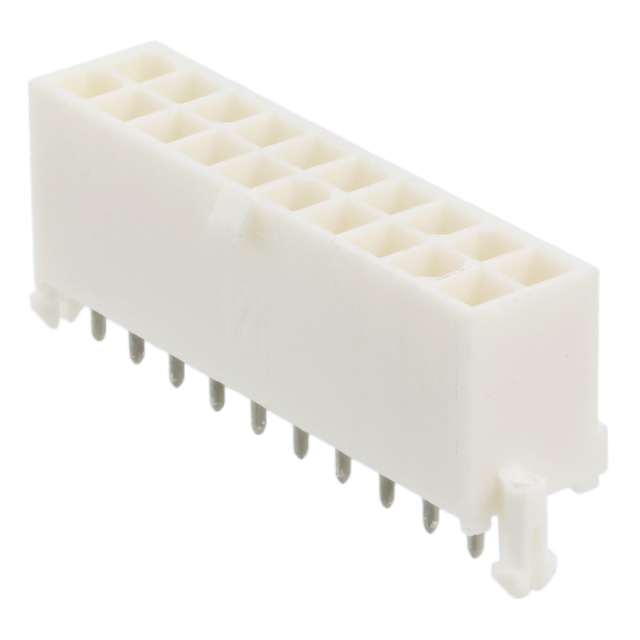

794077-2
Or copy the link below:
- Mfr.Part #
- 794077-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 4.14MM
- Stock
- 37,134
- In Stock ：
- 37,134
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Empty Shell :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Pbfree Code :
- No
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- Current Rating (Amps) :
- Varies by WireGAuge
- Operating Supply Voltage :
- 600V
- Contact Material :
- Brass
- ELV :
- Non-Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- RoHS Status :
- Non-RoHS Compliant
- Voltage - Rated :
- 600VAC
- Housing Material :
- Nylon
- Contact Retention :
- Without
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Current Rating :
- 9.5A
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Length - Post :
- 0.175 4.45mm
- Contact Type :
- Male Pin
- Feature :
- Board Lock
- DIN Conformance :
- No
- Factory Lead Time :
- 12 Weeks
- IEC Conformance :
- No
- Length :
- 42.95mm
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -20°C~105°C
- Row Spacing - Mating :
- 0.163 (4.14mm)
- Max Voltage Rating (AC) :
- 600V
- Contact Shape :
- Circular
- Applications :
- GENERAL PURPOSE
- Contact Finish - Post :
- Tin-Lead
- Pitch - Mating :
- 0.163 4.14mm
- Orientation :
- Vertical
- Style :
- Board to Cable/Wire
- Housing Color :
- White
- Termination :
- Solder
- MIL Conformance :
- No
- Gender :
- Male
- Width :
- 13.49mm
- Number of Signal Positions :
- 0
- Insulation Height :
- 0.531 13.50mm
- JESD-609 Code :
- e0
- Fastening Type :
- Locking Ramp
- Published :
- 2008
- Packaging :
- Bulk
- Sealable :
- No
- Series :
- Mini-Universal MATE-N-LOK
- Plating Thickness :
- 760 nm
- Number of Ports :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Height :
- 9.83mm
- Mixed Contacts :
- No
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Circuit Application :
- Power
- VDE Tested :
- yes
- Number of Rows :
- 2
- Contact Current Rating :
- 9.5A
- Number of Contacts :
- 20
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Datasheets
- 794077-2
Mini-Universal MATE-N-LOK Series 2-Row Header Solder Brass Bulk Through Hole Gold Polyamide (PA), Nylon Board to Cable/Wire 0.531 13.50mm Height
794077-2 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Mini-Universal MATE-N-LOK belongs to the Mini-Universal MATE-N-LOK Series.There are 1 ports available for managing a variety of tasks on this device.In addition to General Purpose, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 600V voltage is used to supply power to this memory.This device operates at a temperature of -20°C~105°C.
794077-2 Features
Mini-Universal MATE-N-LOK series
794077-2 Applications
There are a lot of TE Connectivity AMP Connectors
794077-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
