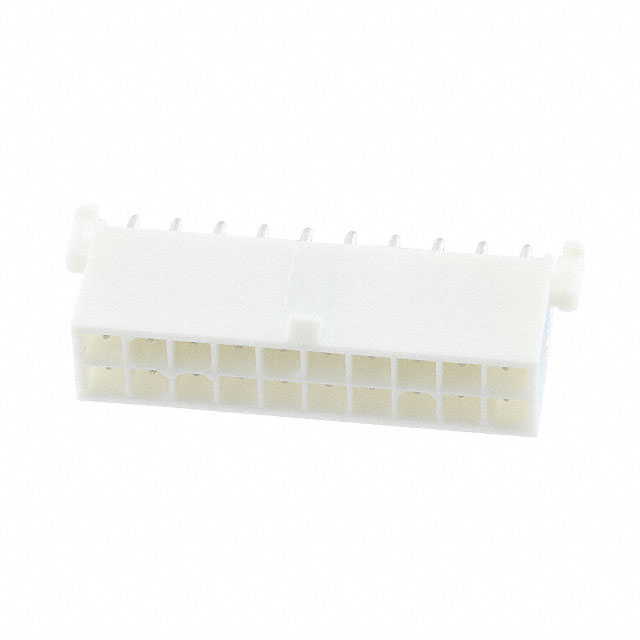

794077-1
Or copy the link below:
- Mfr.Part #
- 794077-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 4.14MM
- Stock
- 39,819
- In Stock ：
- 39,819
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Width :
- 13.49mm
- Number of Contacts :
- 20
- Empty Shell :
- No
- Packaging :
- Bulk
- Pbfree Code :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- IEC Conformance :
- No
- Current Rating (Amps) :
- Varies by WireGAuge
- Voltage - Rated :
- 600VAC
- PCB Mounting Orientation :
- Vertical
- MIL Conformance :
- No
- Row Spacing - Mating :
- 0.163 (4.14mm)
- UL Flammability Code :
- 94V-0
- Feature :
- Board Lock
- Contact Material :
- Brass
- Filter Feature :
- No
- Insulation Height :
- 0.531 13.50mm
- Contact Shape :
- Circular
- Contact Finish - Mating :
- Tin-Lead
- Max Voltage Rating (AC) :
- 600V
- Insulation Color :
- White
- Contact Plating :
- Lead, Tin
- Radiation Hardening :
- No
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.163 4.14mm
- Termination :
- Solder
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Height :
- 9.83mm
- Contact Length - Post :
- 0.175 4.45mm
- Length :
- 42.95mm
- Series :
- Mini-Universal MATE-N-LOK
- Circuit Application :
- Power
- Plating Thickness :
- 150μm
- Contact Current Rating :
- 9.5A
- RoHS Status :
- Non-RoHS Compliant
- Style :
- Board to Cable/Wire
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- VDE Tested :
- yes
- Mixed Contacts :
- No
- ELV :
- Non-Compliant
- Lead Free :
- Contains Lead
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Operating Temperature :
- -20°C~85°C
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Rows :
- 2
- Published :
- 2008
- Number of Ports :
- 1
- Fastening Type :
- Locking Ramp
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Current Rating :
- 9.5A
- JESD-609 Code :
- e0
- Factory Lead Time :
- 13 Weeks
- Connector Type :
- Header
- Orientation :
- Straight
- Applications :
- GENERAL PURPOSE
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Gender :
- Male
- Datasheets
- 794077-1
Mini-Universal MATE-N-LOK Series 2-Row Header Solder Brass Bulk Through Hole Tin-Lead Polyamide (PA), Nylon Board to Cable/Wire 0.531 13.50mm Height
794077-1 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Mini-Universal MATE-N-LOK Series.A variety of tasks can be managed through its 1 ports.A possible application for the device is General Purpose.In many ways, its Board Lock feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -20°C~85°C Operating Temperature.
794077-1 Features
Mini-Universal MATE-N-LOK series
794077-1 Applications
There are a lot of TE Connectivity AMP Connectors
794077-1 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
