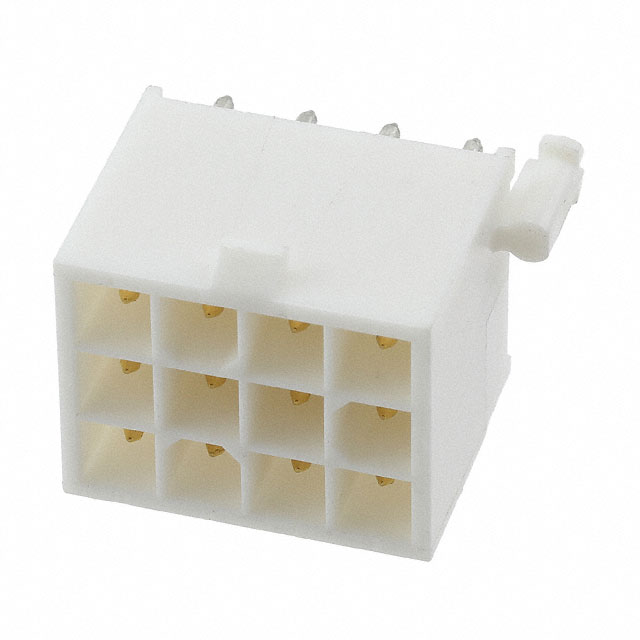

794040-2
Or copy the link below:
- Mfr.Part #
- 794040-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 4.14MM
- Stock
- 84
- In Stock ：
- 84
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Reach Compliance Code :
- not_compliant
- Series :
- Mini-Universal MATE-N-LOK
- Contact Finish - Post :
- Tin-Lead
- Published :
- 2008
- Contact Type :
- Male Pin
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Operating Temperature :
- -20°C~105°C
- Insulation Material :
- Polyamide (PA), Nylon
- Mounting Type :
- Through Hole
- Empty Shell :
- No
- MIL Conformance :
- No
- Current Rating (Amps) :
- Varies by WireGAuge
- Pbfree Code :
- No
- IEC Conformance :
- No
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Voltage - Rated :
- 600VAC
- RoHS Status :
- Non-RoHS Compliant
- Number of Rows :
- 3
- Feature :
- Board Lock
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 12
- Row Spacing - Mating :
- 0.163 (4.14mm)
- Packaging :
- Bulk
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Post :
- 0.175 4.45mm
- Insulation Color :
- White
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.163 4.14mm
- Contact Finish - Mating :
- Gold
- Factory Lead Time :
- 12 Weeks
- Mixed Contacts :
- No
- Fastening Type :
- Locking Ramp
- Insulation Height :
- 0.531 13.50mm
- Contact Material :
- Brass
- Contact Shape :
- Circular
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- JESD-609 Code :
- e0
- UL Flammability Code :
- 94V-0
- Datasheets
- 794040-2
Mini-Universal MATE-N-LOK Series 3-Row Header Solder Brass Bulk Through Hole Gold Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.531 13.50mm Height
794040-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Mini-Universal MATE-N-LOK Series.There is the possibility of using the device for General Purpose.In many ways, Board Lock makes it more powerful.Operating temperature is set to -20°C~105°C.
794040-2 Features
Mini-Universal MATE-N-LOK series
794040-2 Applications
There are a lot of TE Connectivity AMP Connectors
794040-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
