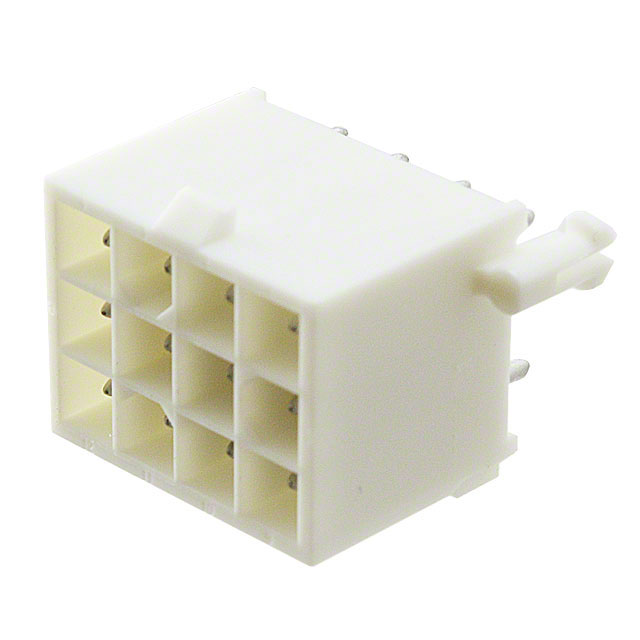

794040-1
Or copy the link below:
- Mfr.Part #
- 794040-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 4.14MM
- Stock
- 6,206
- In Stock ：
- 6,206
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- RoHS Status :
- Non-RoHS Compliant
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Style :
- Board to Cable/Wire
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 12
- Insulation Height :
- 0.531 13.50mm
- Contact Material :
- Brass
- Contact Length - Post :
- 0.175 4.45mm
- Row Spacing - Mating :
- 0.163 (4.14mm)
- Applications :
- GENERAL PURPOSE
- Voltage - Rated :
- 600VAC
- Color :
- White
- Current Rating :
- 9.5A
- Housing Material :
- Polyamide
- Contact Shape :
- Circular
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Finish - Mating :
- Tin-Lead
- Contact Plating :
- Lead, Tin
- Connector Type :
- Header
- Packaging :
- Bulk
- Lead Free :
- Contains Lead
- ELV :
- Non-Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.163 4.14mm
- Material Flammability Rating :
- UL94 V-0
- Number of Circuits :
- 12
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Gender :
- Male
- Feature :
- Board Lock
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -20°C~85°C
- Insulation Color :
- White
- Number of Rows :
- 3
- Contact Finish - Post :
- Tin-Lead
- Series :
- Mini-Universal MATE-N-LOK
- Number of Positions Loaded :
- All
- Pitch :
- 4.1402mm
- Published :
- 2005
- Termination :
- Solder
- Contact Gender :
- Male
- Contact Type :
- Male Pin
- Datasheets
- 794040-1
Mini-Universal MATE-N-LOK Series 3-Row Header Solder Brass Bulk Through Hole Tin-Lead Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.531 13.50mm Height
794040-1 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Universal MATE-N-LOK Series, it can be found in this category.A possible application of the device would be General Purpose.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.Circuits number 12 in the part.The device is operating at -20°C~85°C Operating Temperature.
794040-1 Features
Mini-Universal MATE-N-LOK series
794040-1 Applications
There are a lot of TE Connectivity AMP Connectors
794040-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
