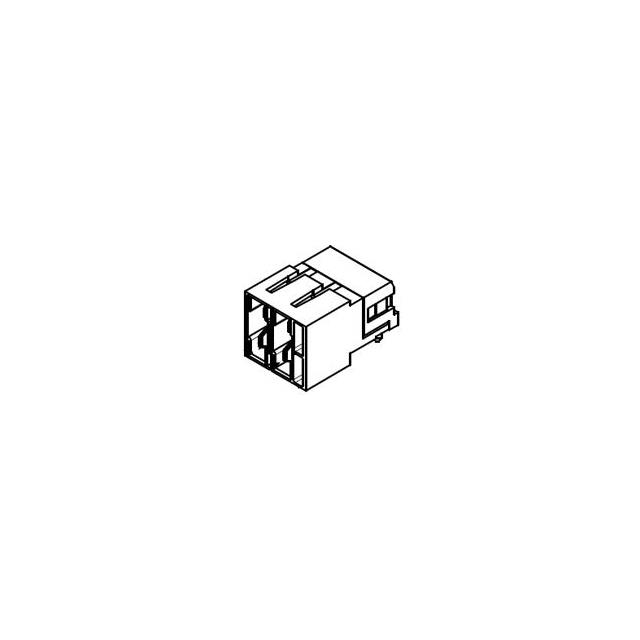

78229-2033
Or copy the link below:
- Mfr.Part #
- 78229-2033
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- I-TRAC RAPWR 7R W/RT HDPLUG PF 4
- Stock
- 2,473
- In Stock ：
- 2,473
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Voltage Rating Max :
- 250VDC
- Gender :
- HDR
- Current Rating (Max) :
- 40/Contact(A)
- Pitch (mm) :
- 2(mm)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Contact Rows :
- 2
- Series :
- *
- Number of Contacts :
- 4(POS)
- Number of Positions Loaded :
- All
- Features :
- Board Guide
- Product Height (mm) :
- 16.7(mm)
- Number of Columns :
- -
- Product Length (mm) :
- 18.3(mm)
- Pitch :
- -
- Number of Rows :
- 2
- Operating Temp Range :
- -20C to 85C
- Housing Material :
- Thermoplastic
- Current Rating (Amps) :
- 40A
- Contact Plating :
- Gold Over Nickel
- Manufacturer :
- Molex
- Type :
- Backplane
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Contact Finish :
- Gold
- Number of Positions :
- 4
- Product Status :
- Active
- Termination Method :
- Press Fit
- Package :
- Bulk
- Contact Layout, Typical :
- 4 Power
- Housing Color :
- Black
- Color :
- Black
- Product Depth (mm) :
- 27.8(mm)
- Connector Type :
- Header, Male Blades
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -20°C ~ 85°C
- Base Product Number :
- 085425
- Connector Usage :
- -
- Voltage Rating :
- 250V
- Reach Compliance Code :
- Compliant
- Connector Style :
- I-Trac, Hold Down Right
- Mounting Style :
- Through Hole
- Body Orientation :
- RIGHT ANGLE
- Packaging :
- Tray
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Press-Fit
- Datasheets
- 78229-2033
78229-2033 Documents
* Series Header, Male Blades Press-Fit Gold Black 30.0µin (0.76µm) 4 Positions Pitch: - -20°C ~ 85°C Tray Board Edge, Through Hole, Right Angle
78229-2033 Overview
A Header, Male Blades package is included with it.Its mounting type is Board Edge, Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the * Series of products.There is no operating temperature for the device.
78229-2033 Features
* series
78229-2033 Applications
There are a lot of Molex
78229-2033 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
