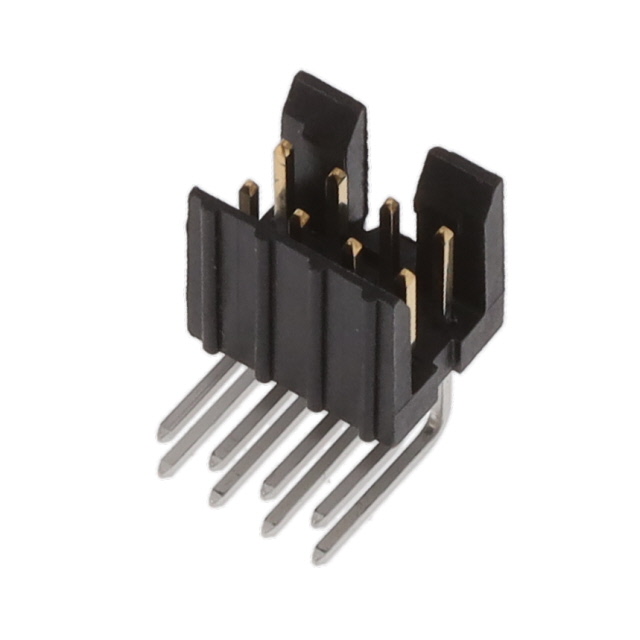

78207-108
Or copy the link below:
- Mfr.Part #
- 78207-108
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.54MM
- Stock
- 933
- In Stock ：
- 933
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Max Voltage Rating (AC) :
- 1kV
- Min Operating Temperature :
- -40°C
- Lead Free :
- Contains Lead
- Mating Post Length :
- 5.84mm
- RoHS Status :
- Non-RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Contact Type :
- Male Pin
- Termination :
- Solder
- Housing Color :
- Black
- Feature :
- Keying Slot
- Fastening Type :
- Friction Lock
- Mount :
- Through Hole
- Number of Rows :
- 2
- Number of Contacts :
- 8
- Length :
- 10.16mm
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.303 7.70mm
- Material Flammability Rating :
- UL94 V-0
- Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2012
- Connector Type :
- Header
- Pitch :
- 2.54mm
- Contact Shape :
- Square
- Number of Positions :
- 8
- Orientation :
- RIGHT ANGLE
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Depth :
- 13.97mm
- Color :
- Black
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Mounting Type :
- Through Hole, Right Angle
- Shrouding :
- Shrouded - 2 Wall
- Radiation Hardening :
- No
- Housing Material :
- Polycyclohexylenedimethylene
- Factory Lead Time :
- 8 Weeks
- Contact Finish - Mating :
- Gold or Gold, GXT™
- Max Operating Temperature :
- 95°C
- Contact Length - Mating :
- 0.230 5.84mm
- Style :
- Board to Cable/Wire
- Current Rating :
- 3A
- Contact Plating :
- Gold
- Packaging :
- Bulk
- Series :
- Mini-PV™, Basics+
- Lead Length :
- 3.05mm
- Insulation Color :
- Black
- Contact Length - Post :
- 0.120 3.05mm
- Datasheets
- 78207-108
78207-108 Documents
Mini-PV™, Basics+ Series 2-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Gold or Gold, GXT™ 8-Position Board to Cable/Wire 0.303 7.70mm Height
78207-108 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Mini-PV™, Basics+ Series.If the temperature is below 95°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Keying Slot feature.There is a mounting hole at Through Hole.
78207-108 Features
Mini-PV™, Basics+ series
78207-108 Applications
There are a lot of Amphenol ICC (FCI)
78207-108 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
