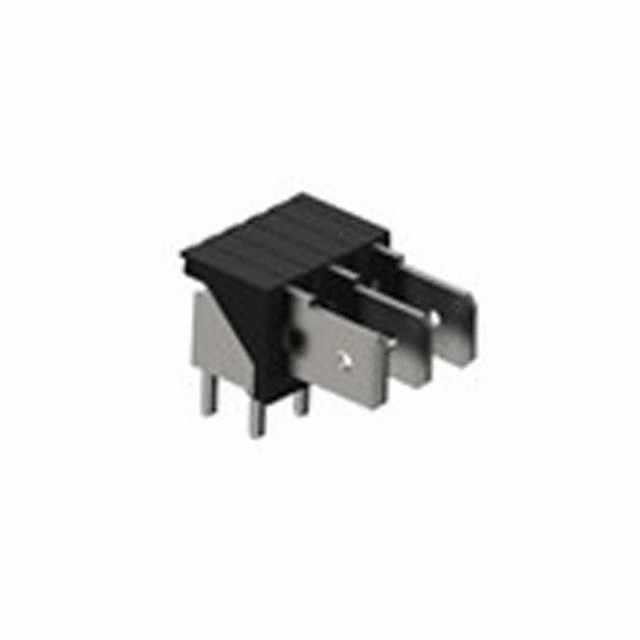

7803
Or copy the link below:
- Mfr.Part #
- 7803
- Manufacturer
- Keystone Electronics Corp.
- Package / Case
- Datasheet
- Download
- Description
- CONN QC TAB 0.250 SOLDER
- Stock
- 273
- In Stock ：
- 273
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Keystone Electronics Corp.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Width - Tab :
- 0.250 6.35mm
- Length :
- 10.67mm
- Gender :
- Male
- Factory Lead Time :
- 6 Weeks
- Pitch :
- 5.1mm
- Length - Tab :
- 0.307 7.80mm
- Mounting Type :
- Through Hole, Right Angle
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Contact Finish :
- Tin
- Contact Material :
- Brass
- Max Voltage Rating (AC) :
- 500V
- Tab Thickness :
- 0.032 0.81mm
- Terminal Type :
- Header
- Diameter :
- 1.3208mm
- Max Current Rating :
- 15A
- Insulation :
- Non-Mating End Insulated
- Feature :
- 3 Tabs
- Termination :
- Solder
- Max Operating Temperature :
- 145°C
- Number of Rows :
- 1
- Orientation :
- RIGHT ANGLE
- ECCN Code :
- EAR99
- Min Operating Temperature :
- -50°C
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8536.69.40.40
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Depth :
- 20mm
- Color :
- Black
- Connector Type :
- INTERCONNECTION DEVICE
- Housing Material :
- Thermoplastic
- Datasheets
- 7803
7803 Documents
7803 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from Keystone Electronics stock available at Xinshop
