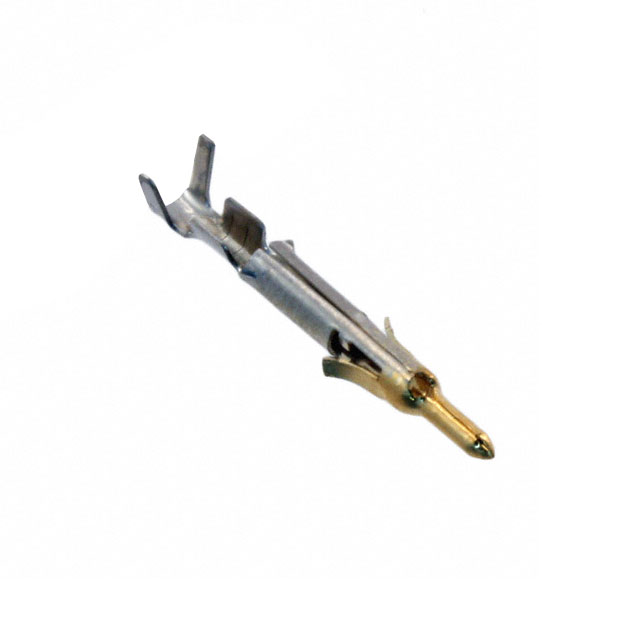

770985-3
Or copy the link below:
- Mfr.Part #
- 770985-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 600
- Datasheet
- Download
- Description
- CONN PIN 22-26AWG GOLD CRIMP
- Stock
- 7,603
- In Stock ：
- 7,603
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Multi Purpose
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Height :
- 2.95mm
- Factory Lead Time :
- 9 Weeks
- Contact Gender :
- Male
- Orientation :
- Straight
- Current Rating :
- 9.5A
- Approval Agency :
- UL
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- DIN Conformance :
- No
- Contact Finish :
- Gold
- Contact Termination :
- Crimp
- Wire/Cable Type :
- Discrete
- Underplate Material :
- Nickel
- Flammability Rating :
- UL94 V-0
- Reach Compliance Code :
- not_compliant
- Plating Thickness :
- 2.54μm
- Cable Entry-Min :
- 0.047 inch
- HTS Code :
- 8536.90.40.00
- Wire Gauge :
- 22-26 AWG
- Packaging :
- Bulk
- Wire/Cable Gauge :
- 26 AWG
- ECCN Code :
- EAR99
- Insulation Diameter :
- 1.75 mm
- Assembly Item Name :
- Contact
- Published :
- 2004
- IEC Conformance :
- No
- Lead Free :
- Contains Lead
- Type :
- Stamped
- Length :
- 17.42mm
- Wire Gauge (Min) :
- 22 AWG
- Max Operating Temperature :
- 221°C
- Cable Entry-Max :
- 0.069 inch
- Mount :
- CABLE
- RoHS Status :
- Non-RoHS Compliant
- Wire Gauge (Max) :
- 26 AWG
- Pbfree Code :
- No
- Contact Current Rating :
- 9.5A
- Package / Case :
- 600
- Depth :
- 2.95mm
- Contact Material :
- Brass
- Shielding :
- Unshielded
- Min Operating Temperature :
- -67°C
- Series :
- Mini-Universal MATE-N-LOK
- Voltage - Rated AC :
- 600V
- VDE Tested :
- yes
- Max Current Rating :
- 9.5A
- Circuit Application :
- Power
- Pin or Socket :
- Pin
- ELV :
- Non-Compliant
- Operating Supply Voltage :
- 600V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 770985-3
