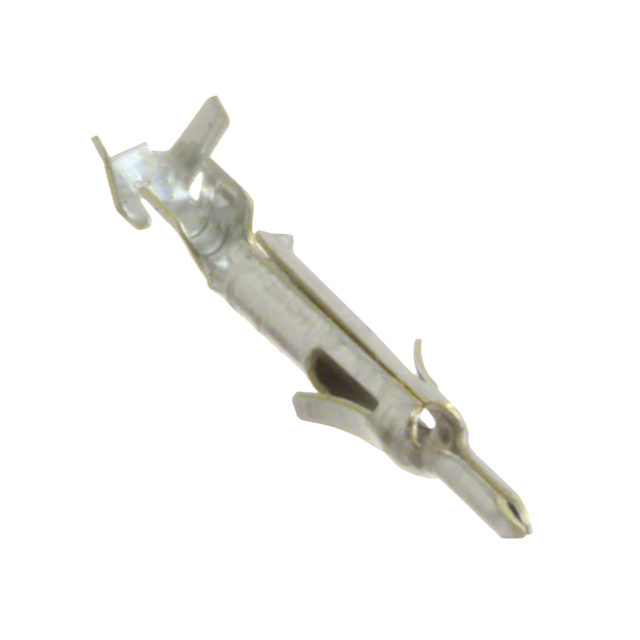

770901-1
Or copy the link below:
- Mfr.Part #
- 770901-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN 22-26AWG TIN CRIMP
- Stock
- 84,430
- In Stock ：
- 84,430
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Multi Purpose
- Cable Entry-Max :
- 0.069 inch
- Pin or Socket :
- Pin
- Wire/Cable Gauge :
- 26 AWG
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Contact Current Rating :
- 9.5A
- VDE Tested :
- yes
- Factory Lead Time :
- 4 Weeks
- HTS Code :
- 8536.90.40.00
- Wire Gauge (Min) :
- 26 AWG
- Max Voltage Rating (AC) :
- 600V
- Contact Termination :
- Crimp
- Length :
- 17.55mm
- IEC Conformance :
- No
- Lead Free :
- Lead Free
- Depth :
- 2.95mm
- Contact Material :
- Brass
- Assembly Item Name :
- Contact
- RoHS Status :
- RoHS Compliant
- Height :
- 2.92mm
- Wire/Cable Type :
- Discrete
- Series :
- Mini-Universal MATE-N-LOK
- REACH SVHC :
- Unknown
- Current Rating :
- 9.5A
- Shielding :
- Unshielded
- Orientation :
- Straight
- Max Current Rating :
- 9.5A
- Max Operating Temperature :
- 221°C
- Cable Entry-Min :
- 0.047 inch
- Published :
- 2005
- Radiation Hardening :
- No
- Type :
- Stamped
- Approval Agency :
- UL
- DIN Conformance :
- No
- Wire Gauge (Max) :
- 22 AWG
- Contact Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Terminations :
- 1
- Insulation Diameter :
- 1.75 mm
- ELV :
- Compliant
- Circuit Application :
- Power
- Operating Supply Voltage :
- 600V
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Min Operating Temperature :
- -67°C
- Packaging :
- Tape and Reel (TR)
- Contact Gender :
- Male
- Voltage - Rated :
- 600V
- Pbfree Code :
- yes
- Wire Gauge :
- 22-26 AWG
- Mount :
- CABLE
- Datasheets
- 770901-1
