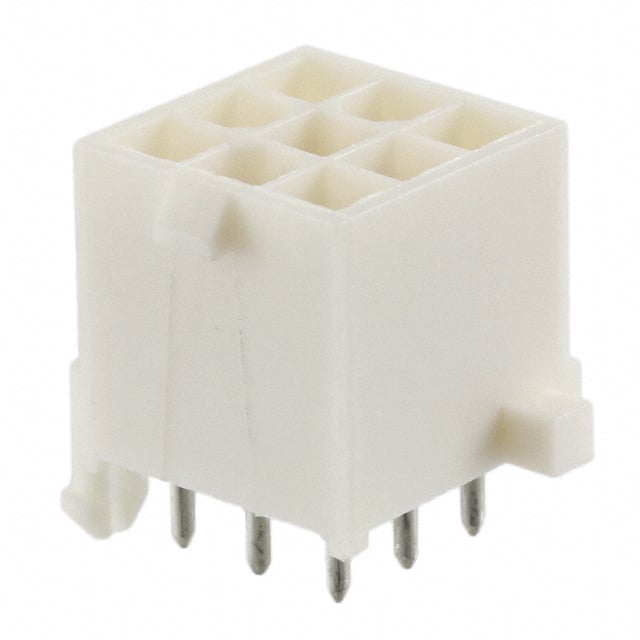

770876-2
Or copy the link below:
- Mfr.Part #
- 770876-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 9POS 4.14MM
- Stock
- 5,466
- In Stock ：
- 5,466
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin-Lead
- Voltage - Rated :
- 600VAC
- Length :
- 13.97mm
- Current Rating :
- 9.5A
- Contact Length - Post :
- 0.175 4.45mm
- Filter Feature :
- No
- Fastening Type :
- Locking Ramp
- Insulation Height :
- 0.531 13.50mm
- Housing Color :
- White
- Applications :
- GENERAL PURPOSE
- Contact Retention :
- Without
- Contact Type :
- Male Pin
- Series :
- Mini-Universal MATE-N-LOK
- Termination :
- Solder
- VDE Tested :
- yes
- Pitch - Mating :
- 0.163 4.14mm
- Published :
- 2008
- Number of Signal Positions :
- 0
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Style :
- Board to Cable/Wire
- Contact Shape :
- Circular
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- JESD-609 Code :
- e0
- Pbfree Code :
- No
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Housing Material :
- Nylon
- Height :
- 13.49mm
- Contact Material :
- Brass
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Operating Temperature :
- -20°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Width :
- 13.97mm
- Mount :
- Through Hole
- Connector Type :
- Header
- Max Voltage Rating (AC) :
- 600V
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Current Rating :
- 9.5A
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mixed Contacts :
- No
- Circuit Application :
- Power
- Current Rating (Amps) :
- Varies by WireGAuge
- ELV :
- Non-Compliant
- RoHS Status :
- Non-RoHS Compliant
- DIN Conformance :
- No
- Operating Supply Voltage :
- 600V
- Number of Contacts :
- 9
- Number of Rows :
- 3
- Row Spacing - Mating :
- 0.163 (4.14mm)
- Orientation :
- Vertical
- Contact Gender :
- Male
- Shrouding :
- Shrouded - 4 Wall
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- Sealable :
- No
- Feature :
- Board Lock
- Empty Shell :
- No
- Plating Thickness :
- 760 nm
- IEC Conformance :
- No
- Datasheets
- 770876-2
Mini-Universal MATE-N-LOK Series 3-Row Header Solder Brass Bulk Through Hole Gold Polyamide (PA), Nylon Board to Cable/Wire 0.531 13.50mm Height
770876-2 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Mini-Universal MATE-N-LOK Series.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.It runs on 600V voltage.Devices operate at -20°C~105°C operating temperatures.
770876-2 Features
Mini-Universal MATE-N-LOK series
770876-2 Applications
There are a lot of TE Connectivity AMP Connectors
770876-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
