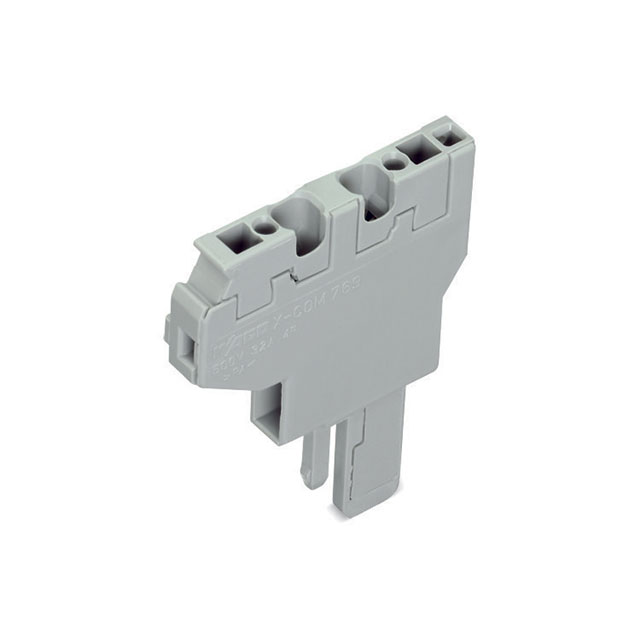

769-504

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Pitch :

0.197 (5.00mm)

Insulation Height :

1.413 (35.89mm)

Wire Gauge or Range - AWG :

12-28 AWG

Contact Tail Length :

-

Termination Style :

Screwless - Spring Cage, Tension Clamp

Number of Levels :

1 (Mate), 2 (Input)

Product Status :

Active

Mounting Type :

Free Hanging (In-Line)

Plug Wire Entry :

180°

Operating Temperature :

-

Connectable conductor cross section multi-wired :

0.08 - 4

Contact Material :

Copper

Ingress Protection :

-

Package :

Bag

Torque - Screw :

-

Features :

Retention Latches (Non-Wire Side)

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Mating Finish :

-

Height :

35.9

Manufacturer :

Wago

Automotive :

No

Type :

Plug, Female Sockets

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Width :

5

Inflammability class of insulation material according to with UL94 :

V0

ECCN (US) :

EAR99

Rated current In :

32

Length :

35.9

Wire Strip Length :

8-9mm

Positions Per Level :

1 (Mate), 2 (Input)

Connectable conductor cross section solid-core :

0.08 - 4

PPAP :

No

Transparent :

No

Color :

Gray

Header Orientation :

-

Series :

X-COM®

Voltage - IEC :

500 V

Wire Gauge or Range - mm² :

0.08-2.5mm²

Current - IEC :

32A

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Depth :

45.2

EU RoHS :

Compliant

Screw Size :

-

Number of Positions :

1 (Mate), 2 (Input)
