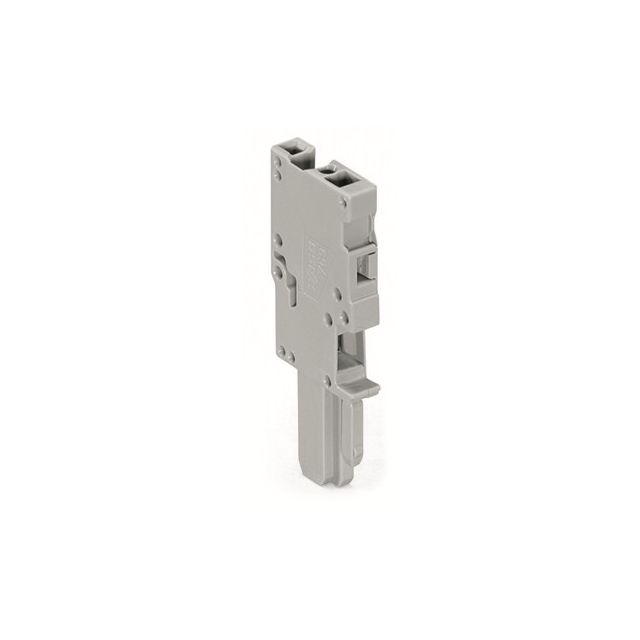

769-101

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Operating Temperature :

-

Termination Style :

Screwless - Push-In Spring

Contact Mating Finish :

-

Approvals :

CCA;CSA;UL

Wire Gauge or Range - mm² :

0.08-2.5mm²

Plug Wire Entry :

225°

Manufacturer :

Wago

Number of Levels :

1

Number of Ports :

1

Lead Free :

Lead Free

Contact Material :

Copper

Package :

Box

Torque - Screw :

-

Color :

Gray

RoHS :

Compliant

Pitch :

-

Wire Type :

Solid Wire;Stranded Wire

Number of Positions :

1

Flammability Rating :

UL94 V-0

Ingress Protection :

-

Type :

Plug, Female Sockets

Voltage - IEC :

500 V

Features :

Retention Latches (Non-Wire Side)

Series :

X-COM®

Material Flammability Rating :

UL94 V-0

Wire Strip Length :

8-9mm

Wire Gauge or Range - AWG :

12-28 AWG

Current - IEC :

32A

Insulation Height :

1.043 (26.50mm)

Positions Per Level :

1

Mounting Type :

Free Hanging (In-Line)

Contact Tail Length :

-

Housing Material :

Polyamide

Product Status :

Active

Screw Size :

-

Header Orientation :

-
