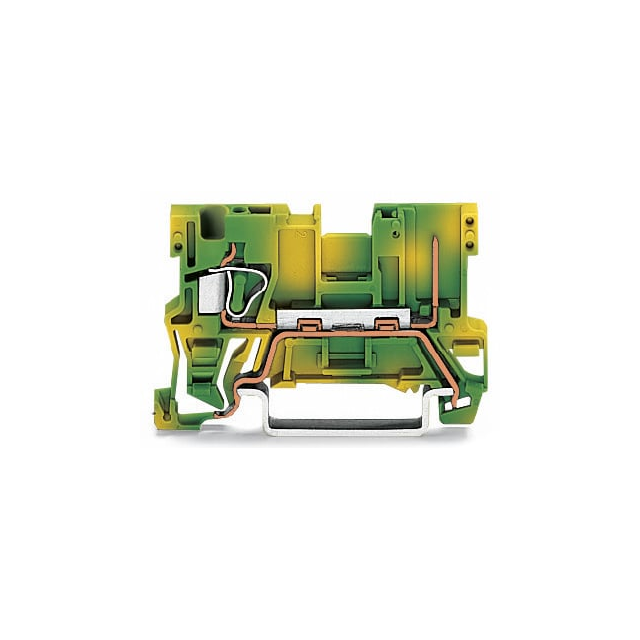

769-237

Manufacturer :

WAGO

Product Category :

Specialized

Color :

Green, Yellow

Package :

Box

Connectable conductor cross section solid-core :

0.08 - 4

Mounting :

T DIN RAIL

Depth :

28.5

Wire Gauge :

12-28(AWG)

Number of Rows :

2

ECCN (US) :

EAR99

Inflammability class of insulation material according to with UL94 :

V0

Mounting Type :

DIN Rail

Operating Temperature :

-

Product Depth (mm) :

52.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Contact Rows :

2

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Stripping Length :

8mm ~ 9mm

Maximum Current Rating (A) :

10

Number of Ways :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

PPAP :

No

Current Rating (Max) :

10(A)

RoHS :

yes

Number of Contacts :

2

Series :

X-COM®

Terminal - Width :

5.0mm

Height (Max) :

1.122 (28.50mm)

Mounting Style :

T DIN RAIL

HTS :

8536.90.40.00

Type :

Terminal Block

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Product Status :

Active

Width :

5mm

Lead Free :

Lead Free

Rated Current :

-

Product Height (mm) :

28.5

Connectable conductor cross section multi-wired :

0.08 - 4

Wire Gauge or Range - AWG :

12-28 AWG

Flammability Rating :

UL94 V-0

Manufacturer :

Wago

Length :

52.5mm

Material Flammability Rating :

UL94 V-0

Features :

-

Number of Circuits :

1

Rad Hardened :

No

Height :

28.5mm

Housing Material :

Polyamide 6/6

Number of Positions :

1

Number of Levels :

1

Minimum Operating Temperature (°C) :

-60

Termination Method :

Cage Clamp

Product Length (mm) :

5

Packaging :

Box

Rated Voltage :

-

Wire Size :

28 → 12 AWG

Termination Style :

Plug Receptacles, Push In, Spring

EU RoHS :

Compliant

Automotive :

No

Maximum Operating Temperature (°C) :

105

Gender :

RCP

Housing Color :

Green/yellow
