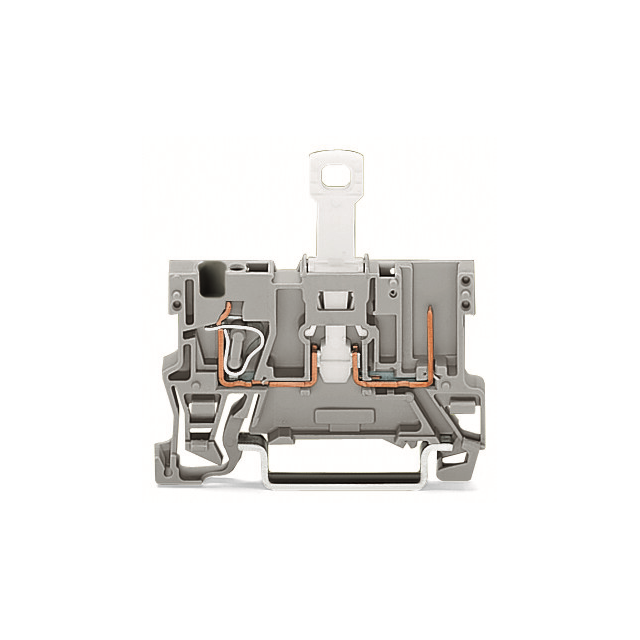

769-232

Manufacturer :

WAGO

Product Category :

Specialized

Color :

Gray

Height (Max) :

1.122 (28.50mm)

Operating Temperature :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Length :

52.5

Material - Insulation :

Polyamide (PA66), Nylon 6/6

PPAP :

No

Stripping Length :

8mm ~ 9mm

Termination Style :

Plug Receptacles, Push In, Spring

Number of Positions :

1

Number of Levels :

1

EU RoHS :

Compliant

Features :

-

Voltage - IEC :

400 V

Height :

52.5

Connectable conductor cross section solid-core :

0.08 - 4

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section multi-wired :

0.08 - 4

Terminal - Width :

5.0mm

Type :

Pluggable Block

Width :

5

HTS :

8536.90.40.00

RoHS :

yes

Depth :

28.5

Current - IEC :

16 A

Approvals :

CSA, UR

Automotive :

No

Manufacturer :

Wago

Housing Color :

Gray

Mounting Type :

DIN Rail

Number of Circuits :

2

Product Status :

Active

Material Flammability Rating :

UL94 V-0

Rated current In :

16

Wire Gauge or Range - AWG :

12-28 AWG

Package :

Box

ECCN (US) :

EAR99

Wire Gauge or Range - mm² :

0.08-2.5mm²

Series :

X-COM®

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4
