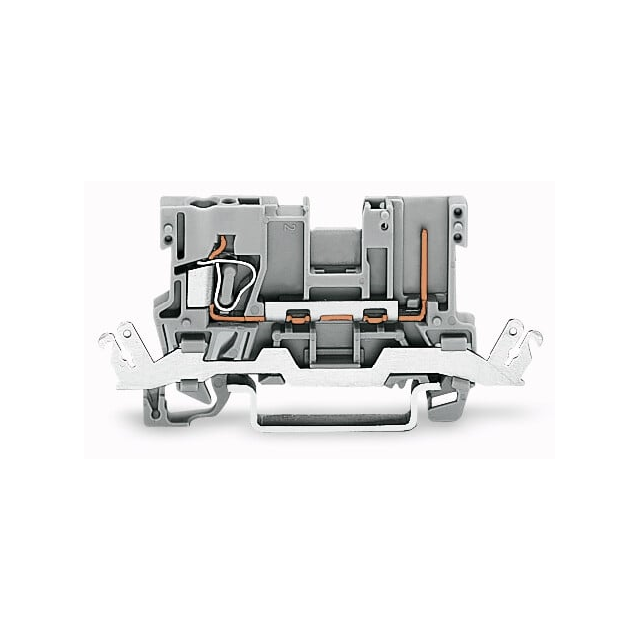

769-231

Manufacturer :

WAGO

Product Category :

Specialized

Mounting Type :

DIN Rail

Length :

71.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Series :

X-COM®

Number of Positions :

1

Product Status :

Active

Inflammability class of insulation material according to with UL94 :

V0

Material - Insulation :

Polyamide (PA66), Nylon 6/6

PPAP :

No

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

0.08-2.5mm²

Automotive :

No

Wire Gauge or Range - AWG :

12-28 AWG

Termination Style :

Plug Receptacles, Push In, Spring

Features :

-

Height (Max) :

1.122 (28.50mm)

Housing Color :

Gray

Number of Levels :

1

Height :

71.5

Type :

Pluggable Block

Approvals :

CSA, UR

Number of Circuits :

1

RoHS :

yes

Terminal - Width :

5.0mm

Current - IEC :

32 A

Connectable conductor cross section multi-wired :

0.08 - 4

Stripping Length :

8mm ~ 9mm

Rated current In :

32

Connectable conductor cross section solid-core :

0.08 - 4

HTS :

8536.90.40.00

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Voltage - IEC :

250 V

Package :

Box

ECCN (US) :

EAR99

EU RoHS :

Compliant

Width :

5

Manufacturer :

Wago

Color :

Gray

Depth :

28.5

Operating Temperature :

-

Flammability Rating :

UL94 V-0
