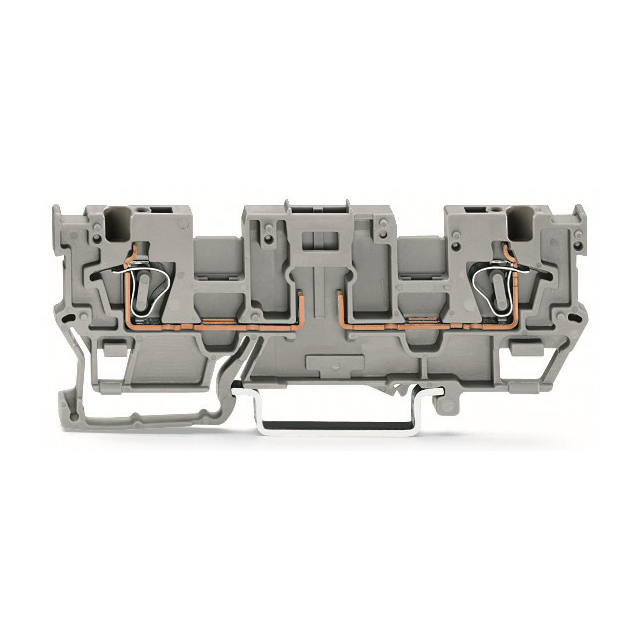

769-191

Manufacturer :

WAGO

Product Category :

Specialized

RoHS :

yes

Number of Levels :

1

Color :

Gray

Material Flammability Rating :

UL94 V-0

Package :

Box

Stripping Length :

8mm ~ 9mm

Operating Temperature :

-

Automotive :

No

HTS :

8536.90.40.00

Number of Positions :

2

ECCN (US) :

EAR99

Terminal - Width :

5.0mm

EU RoHS :

Compliant

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section multi-wired :

0.08 - 4

Type :

Pluggable Block

Housing Color :

Gray

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Mounting Type :

DIN Rail

Wire Gauge or Range - AWG :

12-28 AWG

Width :

5

Voltage - IEC :

400 V

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Manufacturer :

Wago

Height (Max) :

1.122 (28.50mm)

Number of Circuits :

2

PPAP :

No

Height :

87.5

Product Status :

Active

Rated current In :

16

Connectable conductor cross section solid-core :

0.08 - 4

Wire Gauge or Range - mm² :

0.08-2.5mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Series :

X-COM®

Length :

87.5

Termination Style :

Plug Receptacles, Push In, Spring

Depth :

28.5

Current - IEC :

16 A

Features :

-
