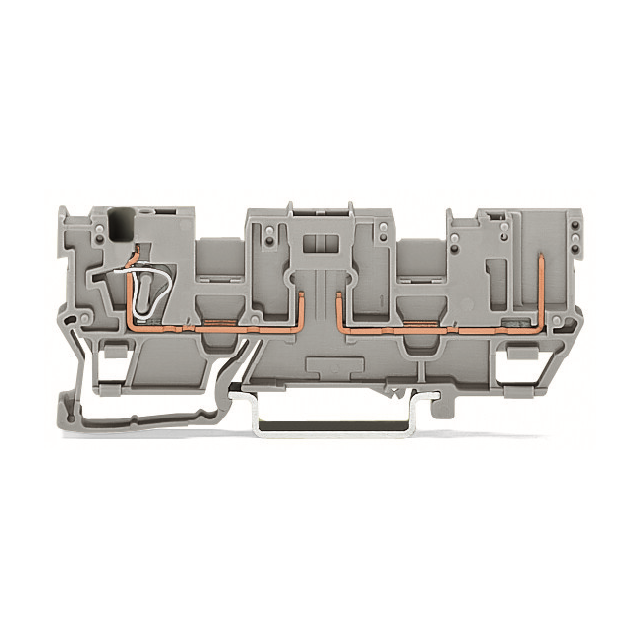

769-181

Manufacturer :

WAGO

Product Category :

Specialized

Voltage - IEC :

400 V

Height (Max) :

1.122 (28.50mm)

Color :

Gray

Series :

X-COM®

EU RoHS :

Compliant

PPAP :

No

Mounting Type :

DIN Rail

Rated current In :

16

Depth :

28.5

Package :

Box

Operating Temperature :

-

Termination Style :

Plug Receptacles, Push In, Spring

Approvals :

CSA, UR

Stripping Length :

8mm ~ 9mm

Automotive :

No

Connectable conductor cross section multi-wired :

0.08 - 4

Connectable conductor cross section solid-core :

0.08 - 4

Terminal - Width :

5.0mm

Height :

87.5

Wire Gauge or Range - mm² :

0.08-2.5mm²

Inflammability class of insulation material according to with UL94 :

V0

Product Status :

Active

Current - IEC :

16 A

Wire Gauge or Range - AWG :

12-28 AWG

Type :

Pluggable Block

Material - Insulation :

Polyamide (PA66), Nylon 6/6

ECCN (US) :

EAR99

Length :

87.5

RoHS :

yes

Number of Levels :

1

Manufacturer :

Wago

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Material Flammability Rating :

UL94 V-0

Number of Positions :

1

Width :

5

Features :

-

HTS :

8536.90.40.00

Housing Color :

Gray
