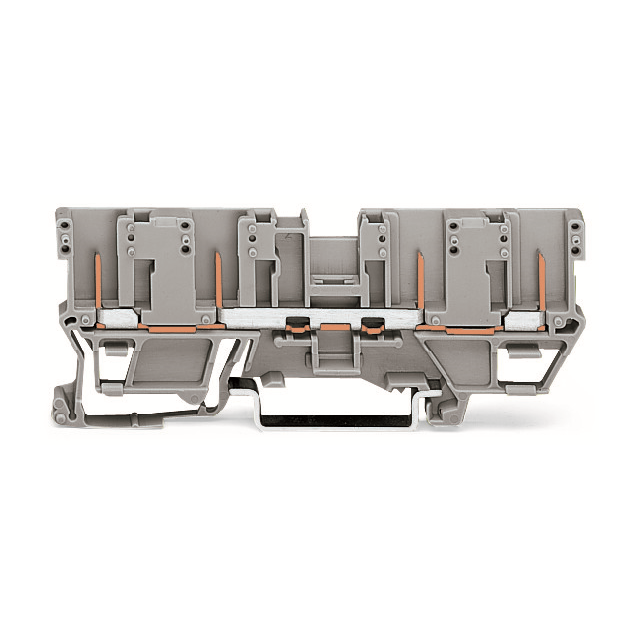

769-151

Manufacturer :

WAGO

Product Category :

Specialized

Rated current In :

32

Number of Levels :

1

Stripping Length :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Wire Gauge or Range - AWG :

-

Manufacturer :

Wago

Width :

5

Height :

87.5

Package :

Box

Current - IEC :

32 A

Features :

-

Flammability Rating :

UL94 V-0

Depth :

28.5

Color :

Gray

Series :

X-COM®

Inflammability class of insulation material according to with UL94 :

V0

PPAP :

No

Type :

Pluggable Block

ECCN (US) :

EAR99

Voltage - IEC :

500 V

Mounting Type :

DIN Rail

Number of Circuits :

1

Length :

87.5

Operating Temperature :

-

Termination Style :

Plug Receptacles, Push In, Spring

RoHS :

yes

Product Status :

Active

Automotive :

No

Terminal - Width :

5.0mm

Height (Max) :

1.122 (28.50mm)

Housing Color :

Gray

EU RoHS :

Compliant

HTS :

8536.90.40.00

Number of Positions :

4

Approvals :

CSA, UR

Wire Gauge or Range - mm² :

-

Material Flammability Rating :

UL94 V-0
