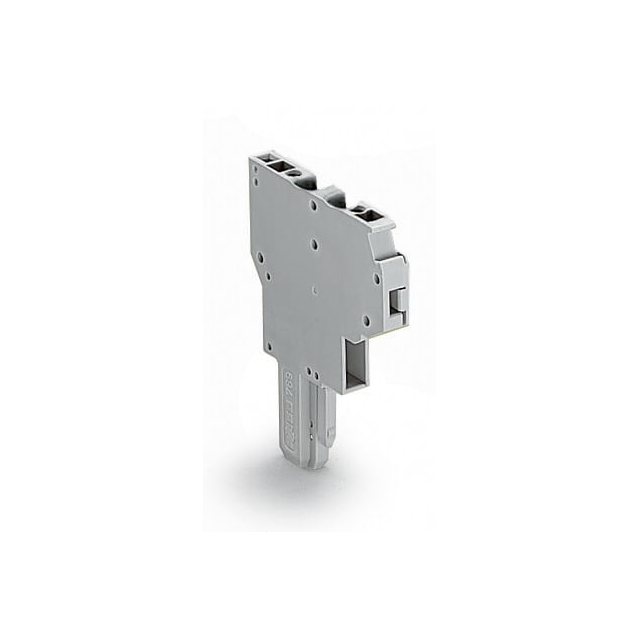

769-121

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Operating Temperature :

-

Number of Levels :

1 (Mate), 2 (Input)

Current - IEC :

32A

Contact Material :

Copper

Screw Size :

-

Contact Tail Length :

-

Number of Ports :

1

Pitch :

0.197 (5.00mm)

Wire Gauge or Range - mm² :

0.08-2.5mm²

Voltage - IEC :

500 V

Contact Mating Finish :

-

Package :

Box

Termination Style :

Screwless - Push-In Spring

Series :

X-COM®

Torque - Screw :

-

Wire Strip Length :

8-9mm

Wire Type :

Solid Wire;Stranded Wire

Manufacturer :

Wago

Type :

Plug, Female Sockets

Insulation Height :

1.413 (35.89mm)

Product Status :

Active

Positions Per Level :

1 (Mate), 2 (Input)

Wire Gauge or Range - AWG :

12-28 AWG

Plug Wire Entry :

180°

Material Flammability Rating :

UL94 V-0

Header Orientation :

-

Housing Material :

Polyamide

Color :

Gray

Ingress Protection :

-

Features :

Retention Latches (Non-Wire Side)

Mounting Type :

Free Hanging (In-Line)

Number of Positions :

1 (Mate), 2 (Input)
