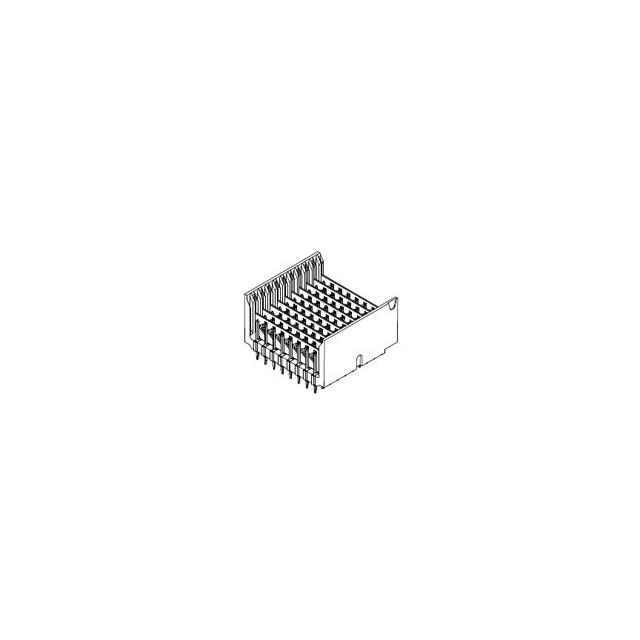

76763-8501

Manufacturer :

Molex

Product Category :

Specialized

Voltage Rating :

120 V

Product :

Headers

Current Rating (Amps) :

1A

Product Height (mm) :

12.3(mm)

Mounting Angle :

Vertical

Manufacturer :

Molex

Number of Columns :

25

Number of Contact Rows :

6

Features :

Shielded

Product Status :

Active

Termination Method :

Solder

Body Orientation :

Straight

Contact Finish Thickness :

30.0µin (0.76µm)

Package :

Box

Connector Style :

VHDM

Contact Material :

COPPER ALLOY

Pitch :

2 mm

Contact Plating :

Gold Over Nickel

Operating Temperature :

-55°C ~ 85°C

Gender :

HDR

RoHS :

Details

Type :

VHDM

Product Type :

Hard Metric Connectors

Connector Usage :

-

Number of Positions Loaded :

All

Number of Contacts :

150(POS)

Number of Positions :

150 Position

Housing Color :

Black

Color :

Black

Maximum Operating Temperature :

+ 85 C

Connector Type :

Header, Male Pins

Housing Material :

Liquid Crystal Polymer (LCP)

Mounting Type :

Through Hole

Contact Finish :

Gold

Subcategory :

Backplane Connectors

Operating Temp Range :

-55C to 85C

Current Rating :

1 A

Voltage Rating Max :

120VDC/120VAC

Tradename :

VHDM

Current Rating (Max) :

1/Contact(A)

Material Flammability Rating :

UL94 V-0

Product Category :

Hard Metric Connectors

Termination Style :

Solder Tail

Brand :

Molex

Termination :

Press-Fit

Number of Rows :

6 Row

Product Length (mm) :

50(mm)

Product Depth (mm) :

17.1(mm)

Series :

76763

Packaging :

Tube

Pitch (mm) :

2(mm)

Minimum Operating Temperature :

- 55 C

Contact Layout, Typical :

-

Mounting Style :

Through Hole
