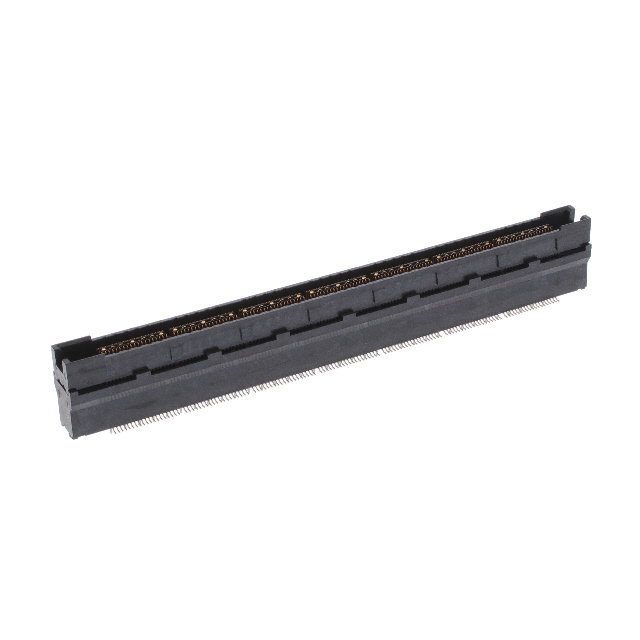

767095-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Plating Thickness :

5μin

Pbfree Code :

No

Reliability :

COMMERCIAL

Packaging :

Tube

Number of Columns :

133

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Reference Standard :

UL, CSA

Contact Finish Thickness - Mating :

762 nm

Height :

15.0114mm

Durability :

500 Cycles

Contact Current Rating :

11.5A

Contact Finish :

Palladium-Nickel

RoHS Status :

Non-RoHS Compliant

Contact Finish Thickness :

5.00μin 0.127μm

Total Number of Contacts :

266

Withdrawl Force-Min :

.139 N

Filter Feature :

No

Min Operating Temperature :

-55°C

Rated Current (Signal) :

1A

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Sealable :

No

MIL Conformance :

No

HTS Code :

8536.69.40.40

Polarization Key :

ENDS

Mating Alignment :

With

Max Operating Temperature :

125°C

Differential Signaling :

yes

Number of Rows :

2

Factory Lead Time :

25 Weeks

Number of Positions :

266

Insulation Resistance :

2MOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Plating :

Gold, Lead, Nickel, Tin

PCB Mount Retention :

Without

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

Contact Pattern :

RECTANGULAR

Housing Material :

LIQUID CRYSTAL POLYMER

Flammability Rating :

UL94 V-0

Termination :

SMD/SMT

Feature :

Board Guide, Ground Bus (Plane)

Mounting Type :

Surface Mount

Mount :

Surface Mount

Underplate Material :

Nickel

Series :

MICTOR

Pitch :

0.025 0.64mm

PCB Thickness :

15.748mm

Dielectric Withstanding Voltage :

500VAC V

ECCN Code :

EAR99

IEC Conformance :

No

Orientation :

Vertical

Height Above Board :

0.587 14.91mm

Length :

101.6mm

ELV :

Compliant

Published :

2007

Gender :

Receptacle

Color :

Black

Number of Conductors :

ONE

Circuit Application :

Signal

Stack Height :

18mm

PCB Contact Pattern :

RECTANGULAR

Contact Resistance :

10MOhm

Data Rate :

10 Gbps

Number of Power Positions :

7

Connector Type :

Receptacle, Center Strip Contacts

Body Breadth :

0.315 inch

Mixed Contacts :

No

Width :

8mm

DIN Conformance :

No

Number Of PCB Rows :

2
