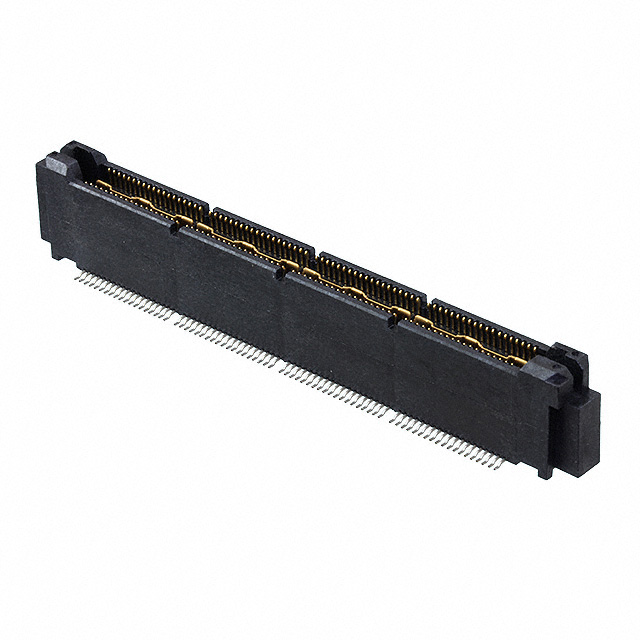

767003-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Type :

High Speed Fine Pitch Connector

Connector Type :

BOARD STACKING CONNECTOR

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Plating :

Gold

Rated Current (Signal) :

1 A

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Body Orientation :

Straight

Board Mounting Option :

LOCATING POSTS

DIN Conformance :

No

Body Depth :

0.419 inch

Housing Color :

Black

Terminal Pitch :

0.64 mm

Reach Compliance Code :

Compliant

Plating Thickness :

30u inch

MIL Conformance :

No

Operating Temperature :

-55 to 125 °C

Body/Shell Style :

PLUG

Contact Style :

BELLOWED TYPE

Total Number of Contacts :

152

Contact Material :

NOT SPECIFIED

Insulator Color :

Black

Filter Feature :

No

HTS Code :

8536.69.40.40

Maximum Voltage Rating :

30

Pitch :

2.5400, 0.6400 mm

ECCN Code :

EAR99

Contact Pattern :

RECTANGULAR

Pbfree Code :

No

Withdrawl Force-Min :

.139 N

Additional Feature :

MICTOR, POLARIZED

Termination Method :

Solder

Gender :

PLUG

Insulation Resistance :

10000000000 Ω

Body Breadth :

0.208 inch

IEC Conformance :

No

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

Contact Resistance :

10 MΩ

Durability :

25 Cycles

Mounting Type :

BOARD

Mating Contact Pitch :

0.025 inch

PCB Contact Row Spacing :

7.0866 mm

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Insertion Force-Max :

1.112 N

Reference Standard :

UL

Number of Rows :

2

Termination Type :

Surface Mount

Product Length :

63.5 mm

Mounting Style :

Straight

JESD-609 Code :

e0

Polarization Key :

POLARIZED HOUSING

Contact Gender :

Male

Dielectric Withstanding Voltage :

500VAC V

Number Of PCB Rows :

2
