767005-9

Share

Or copy the link below:

Mfr.Part #
767005-9
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG 76POS SMD GOLD
Stock
43,255
In Stock :
43,255

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
Operating Temp Range :
-55C to 125C
Gender :
PLUG
Mixed Contacts :
No
Number of Contact Rows :
2
Withdrawl Force-Min :
.139 N
Number of Rows :
2
Reach Compliance Code :
Compliant
Number Of PCB Rows :
2
Connector Type :
BOARD CONNECTOR
Terminal Pitch :
2.54 mm
PCB Contact Pattern :
RECTANGULAR
Contact Style :
BELLOWED TYPE
MIL Conformance :
No
Number of Positions :
76 Position
Product :
Plugs
Insertion Force-Max :
1.112 N
Board Mounting Option :
LOCATING POSTS
Type :
High Speed Fine Pitch Connector
DIN Conformance :
No
PCB Contact Row Spacing :
7.0866 mm
Insulator Color :
Black
Contact Material :
NOT SPECIFIED
Factory Lead Time :
14 Weeks
Dielectric Withstanding Voltage :
500VAC V
Maximum Voltage Rating :
30
Operating Temperature :
-55 to 125 °C
Voltage Rating Max :
30VAC
Reliability :
COMMERCIAL
Additional Feature :
STACKING HEIGHT=0.495 INCH
Packaging :
Tube
Total Number of Contacts :
76
Body/Shell Style :
PLUG
Housing Material :
Liquid Crystal Polymer (LCP)
Pitch :
2.5400, 0.6400 mm
Body Orientation :
Straight
Contact Gender :
Male
Filter Feature :
No
Base/Housing Material :
LCP (Liquid Crystal Polymer)
Current Rating (Max) :
11.5/CONTACT(A)
Product Depth (mm) :
5.28(mm)
Termination Type :
Surface Mount
Number of Contacts :
2Power/76Signal(POS)
JESD-609 Code :
e0
Option :
GENERAL PURPOSE
Mounting Style :
Straight
Reference Standard :
UL
Housing Color :
Black
Contact Resistance :
10 MΩ
Plating Thickness :
30u inch
Product Length :
38.1 mm
Polarization Key :
POLARIZED HOUSING
Contact Resistance Max :
10(mohm)
Contact Plating :
Gold
Termination Method :
Solder
IEC Conformance :
No
Durability :
25 Cycles
Contact Pattern :
RECTANGULAR
Body Depth :
0.484 inch
Product Length (mm) :
38.1(mm)
Pitch (mm) :
2.54/0.64(mm)
Insulation Resistance :
10000000000 Ω
Mounting Type :
BOARD
Body Breadth :
0.208 inch
Mating Contact Pitch :
0.025 inch
Product Height (mm) :
12.45(mm)
Brand Name :
AMP
Rated Current (Signal) :
1 A
Datasheets
767005-9
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 767005-9 from Chip IC,where excellence meets affordability. This product stands out with its Type:High Speed Fine Pitch Connector, Operating Temperature:-55 to 125 °C, Mounting Type:BOARD, 767005-9 pinout, 767005-9 datasheet PDF, 767005-9 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 767005-9 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

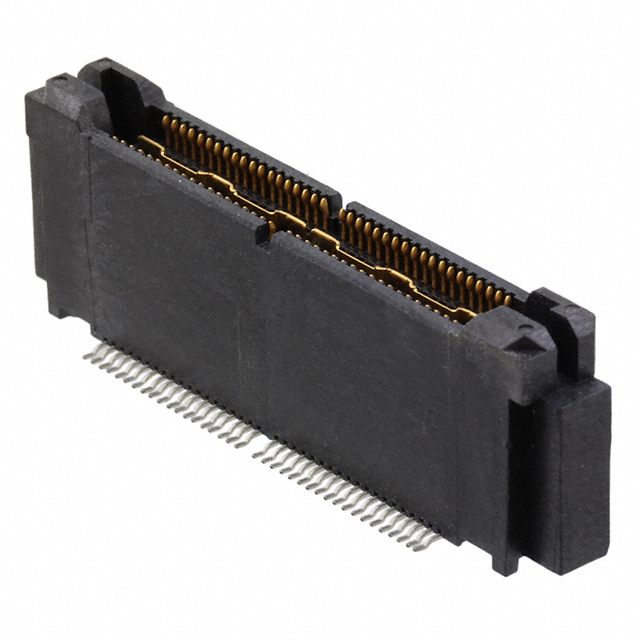

TE Connectivity AMP Connectors 767005-9


BOARD CONNECTOR Tube 2 Rows 2.5400, 0.6400 mm BOARD 76 Position Positions NOT SPECIFIED

767005-9 Overview


Currently, it is packaged in BOARD CONNECTOR.A Tube case is used to package the product.The mounting type of the device is BOARD.Furthermore, there are other features available, such as STACKING HEIGHT=0.495 INCH, to name a few.

767005-9 Features


Package / Case: Tube
Mounting Type:BOARD
Additional Feature: STACKING HEIGHT=0.495 INCH
