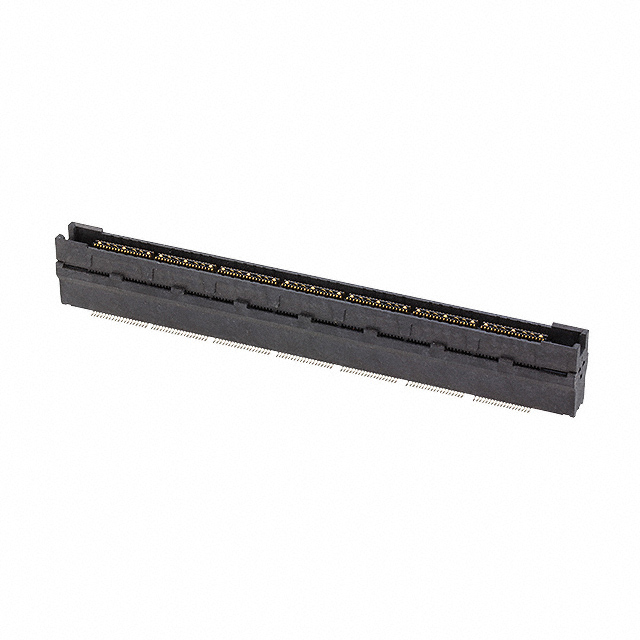

767094-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Reference Standard :

UL, CSA

Orientation :

Vertical

Mounting Type :

Surface Mount

Number of Rows :

2

Flammability Rating :

UL94 V-0

Contact Plating :

Gold, Lead, Nickel, Tin

Number of Positions :

266

Contact Current Rating :

11.5A

Body Breadth :

0.315 inch

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Height Above Board :

0.587 14.91mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

1A

Data Rate :

10 Gbps

Dielectric Withstanding Voltage :

500VAC V

Filter Feature :

No

Contact Finish :

Palladium-Nickel

Width :

8mm

Number of Conductors :

ONE

Total Number of Contacts :

266

Sealable :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance :

10MOhm

JESD-609 Code :

e0

Underplate Material :

Nickel

PCB Thickness :

1.57mm

Number of Power Positions :

7

Durability :

500 Cycles

Polarization Key :

ENDS

Pitch :

0.025 0.64mm

Circuit Application :

Signal

Packaging :

Tube

Contact Finish Thickness - Mating :

120 nm

Published :

2007

Option :

GENERAL PURPOSE

Withdrawl Force-Min :

.139 N

Mount :

Surface Mount

Min Operating Temperature :

-55°C

Plating Thickness :

5μin

Mating Alignment :

Without

Insulation Resistance :

2MOhm

PCB Contact Pattern :

RECTANGULAR

Depth :

8mm

Color :

Black

Pbfree Code :

No

Contact Finish Thickness :

30.0μin 0.76μm

PCB Mount Alignment :

With

Differential Signaling :

yes

Feature :

Board Guide, Ground Bus (Plane)

RoHS Status :

Non-RoHS Compliant

Housing Material :

Polymer

Height :

15.0114mm

MIL Conformance :

No

Contact Gender :

FEMALE

Number of Columns :

133

Row Spacing :

5.79 mm

Length :

101.6mm

IEC Conformance :

No

Series :

MICTOR

ELV :

Compliant

Stack Height :

18mm

DIN Conformance :

No

Termination :

SMD/SMT

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Max Operating Temperature :

125°C

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

Connector Type :

Receptacle, Center Strip Contacts

Factory Lead Time :

25 Weeks

Mixed Contacts :

No

Max Voltage Rating (AC) :

30V

Number Of PCB Rows :

2
