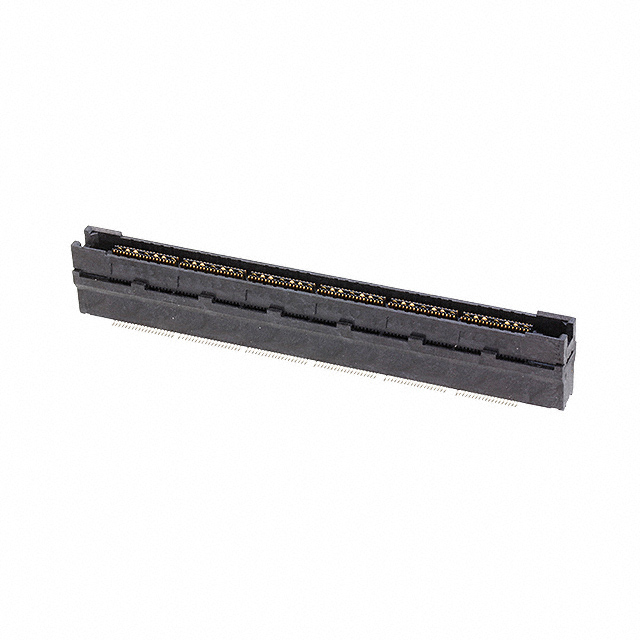

767094-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Reference Standard :

UL, CSA

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Current Rating :

11.5A

ELV :

Compliant

Row Spacing :

5.79 mm

Number of Power Positions :

6

Flammability Rating :

UL94 V-0

Circuit Application :

Signal

Mating Alignment :

Without

Total Number of Contacts :

228

Contact Finish :

Palladium-Nickel

Dielectric Withstanding Voltage :

500VAC V

Underplate Material :

Nickel

Plating Thickness :

5μin

Mounting Type :

Surface Mount

Number Of PCB Rows :

2

Height :

15.0114mm

RoHS Status :

Non-RoHS Compliant

Series :

MICTOR

Min Operating Temperature :

-55°C

Body Breadth :

0.315 inch

Rated Current (Signal) :

1A

Polarization Key :

ENDS

Filter Feature :

No

JESD-609 Code :

e0

Sealable :

No

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

Lead Free :

Contains Lead

Height Above Board :

0.587 14.91mm

Contact Finish Thickness :

30.0μin 0.76μm

Width :

8mm

Orientation :

Vertical

Durability :

500 Cycles

ECCN Code :

EAR99

Mount :

Surface Mount

Length :

88.9mm

Contact Finish Thickness - Mating :

120 nm

Stack Height :

18mm

Housing Material :

Polymer

Differential Signaling :

yes

Body Depth :

0.587 inch

Contact Plating :

Gold, Lead, Nickel, Tin

Contact Pattern :

RECTANGULAR

Max Operating Temperature :

125°C

Pitch :

0.025 0.64mm

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Contact Resistance :

10MOhm

PCB Thickness :

1.57mm

Connector Type :

Receptacle, Center Strip Contacts

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

PCB Mount Alignment :

With

Number of Positions :

228

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

No

Packaging :

Tube

Color :

Black

Withdrawl Force-Min :

.139 N

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Termination :

SMD/SMT

Number of Columns :

114

Factory Lead Time :

25 Weeks

Number of Rows :

2

Data Rate :

10 Gbps

Published :

2007

Feature :

Board Guide, Ground Bus (Plane)

IEC Conformance :

No

Contact Gender :

FEMALE

DIN Conformance :

No

Insulation Resistance :

2MOhm
