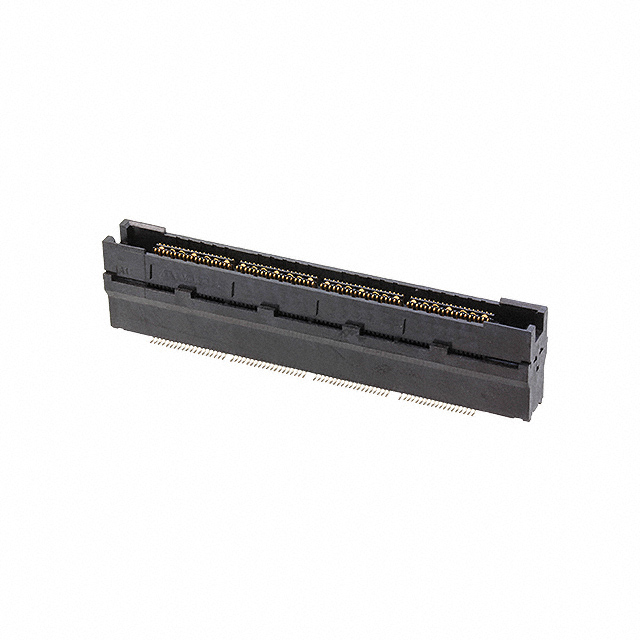

767094-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

MIL Conformance :

No

Number of Positions :

152

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Rows :

2

Termination :

SMD/SMT

Height :

15.0114mm

PCB Thickness :

1.57mm

Plating Thickness :

5μin

Differential Signaling :

yes

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Durability :

500 Cycles

Pitch :

0.025 0.64mm

Body Depth :

0.587 inch

Reference Standard :

UL, CSA

Published :

2007

Contact Plating :

Gold, Lead, Nickel, Tin

Number of Columns :

76

Sealable :

No

Contact Pattern :

RECTANGULAR

Feature :

Board Guide, Ground Bus (Plane)

Underplate Material :

Nickel

Filter Feature :

No

Height Above Board :

0.587 14.91mm

Rated Current (Signal) :

1A

Option :

GENERAL PURPOSE

JESD-609 Code :

e0

Max Operating Temperature :

125°C

Stack Height :

18mm

Housing Material :

Polymer

Orientation :

Vertical

DIN Conformance :

No

Contact Current Rating :

11.5A

IEC Conformance :

No

Length :

63.45mm

Packaging :

Tube

Flammability Rating :

UL94 V-0

Color :

Black

Circuit Application :

Signal

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

Dielectric Withstanding Voltage :

500VAC V

Mounting Type :

Surface Mount

Contact Finish :

Palladium-Nickel

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

25 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount

Total Number of Contacts :

152

Reliability :

COMMERCIAL

Polarization Key :

ENDS

Mating Alignment :

Without

Row Spacing :

5.79 mm

Min Operating Temperature :

-55°C

Number of Power Positions :

4

Contact Finish Thickness - Mating :

120 nm

Data Rate :

10 Gbps

Connector Type :

Receptacle, Center Strip Contacts

Contact Gender :

FEMALE

Number Of PCB Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Series :

MICTOR

Insulation Resistance :

2MOhm

Number of Conductors :

ONE

Body Breadth :

0.315 inch

Contact Resistance :

10MOhm

Width :

8mm

Withdrawl Force-Min :

.139 N

ELV :

Compliant

PCB Mount Alignment :

With

Contact Finish Thickness :

30.0μin 0.76μm
