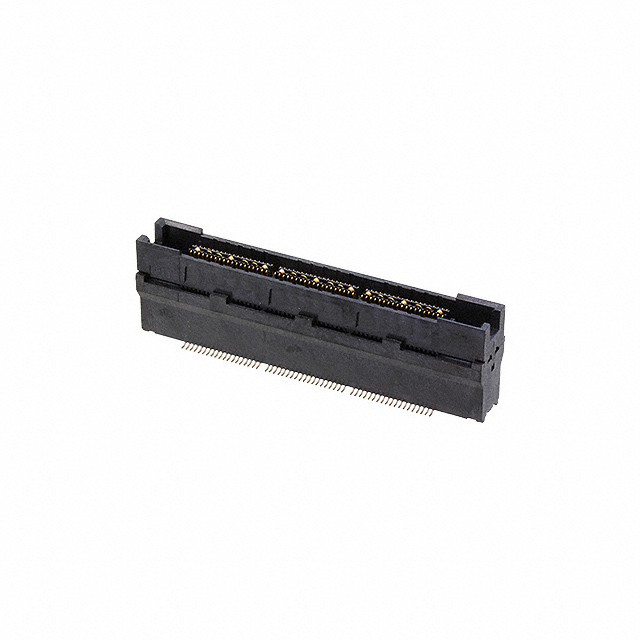

767094-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Current Rating :

11.5A

JESD-609 Code :

e0

Gender :

Receptacle

Number of Power Positions :

3

Width :

8mm

Row Spacing :

5.79 mm

Mating Alignment :

Without

DIN Conformance :

No

Factory Lead Time :

25 Weeks

Termination :

SMD/SMT

Mixed Contacts :

No

Connector Type :

Receptacle, Center Strip Contacts

Feature :

Board Guide, Ground Bus (Plane)

Contact Finish :

Palladium-Nickel

Mounting Type :

Surface Mount

Mount :

Surface Mount, Through Hole

Differential Signaling :

yes

Depth :

8mm

Data Rate :

10 Gbps

Rated Current (Signal) :

1A

Number of Columns :

57

RoHS Status :

Non-RoHS Compliant

Published :

2007

Contact Plating :

Gold, Lead, Nickel, Tin

Filter Feature :

No

Sealable :

No

Flammability Rating :

UL94 V-0

Height Above Board :

0.587 14.91mm

Plating Thickness :

5μin

Polarization Key :

ENDS

Contact Resistance :

10MOhm

Stack Height (Mating) :

15.62mm 18mm 20mm 21.6mm 27mm 27.8mm 29mm 31.9mm

PCB Mount Alignment :

With

Number of Positions :

114

Reference Standard :

UL, CSA

ELV :

Compliant

Number of Rows :

2

Orientation :

Vertical

Circuit Application :

Signal

Contact Finish Thickness :

30.0μin 0.76μm

Option :

GENERAL PURPOSE

Durability :

500 Cycles

Packaging :

Tube

MIL Conformance :

No

Height :

15.0114mm

Series :

MICTOR

Housing Material :

Polymer

Contact Pattern :

RECTANGULAR

Min Operating Temperature :

-55°C

Dielectric Withstanding Voltage :

500VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

50.79746mm

IEC Conformance :

No

Contact Finish Thickness - Mating :

120 nm

Reliability :

COMMERCIAL

Pitch :

0.025 0.64mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

114

Max Operating Temperature :

125°C

Underplate Material :

Nickel

Color :

Black

Insulation Resistance :

2MOhm

Max Voltage Rating (AC) :

30V

PCB Contact Pattern :

RECTANGULAR

Stack Height :

18mm

Number Of PCB Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

PCB Thickness :

1.57mm

Number of Conductors :

ONE
