767089-6
Or copy the link below:
- Mfr.Part #
- 767089-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP 228P EDGE PALLAD-NICKEL
- Stock
- 43,261
- In Stock ：
- 43,261
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- PCB Thickness :
- 2.36mm
- Data Rate :
- 10 Gbps
- Number of Positions :
- 228
- Reference Standard :
- UL, CSA
- RoHS Status :
- Non-RoHS Compliant
- Max Operating Temperature :
- 125°C
- Underplate Material :
- Nickel
- PCB Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Orientation :
- Straight
- Dielectric Withstanding Voltage :
- 500VAC V
- Insulation Resistance :
- 2MOhm
- Number of Rows :
- 2
- Mating Alignment :
- Without
- Series :
- MICTOR
- Contact Current Rating :
- 11.5A
- DIN Conformance :
- No
- Published :
- 2007
- Min Operating Temperature :
- -55°C
- Number Of PCB Rows :
- 2
- Max Voltage Rating (AC) :
- 30V
- Feature :
- Board Guide, Ground Bus (Plane)
- Pitch :
- 0.025 0.64mm
- ELV :
- Compliant
- Polarization Key :
- ENDS
- Operating Supply Voltage :
- 30V
- Contact Finish Thickness - Mating :
- 120 nm
- Plating Thickness :
- 5μin
- Termination :
- SMD/SMT
- Contact Resistance :
- 10MOhm
- Rated Current (Signal) :
- 1A
- Durability :
- 500 Cycles
- Row Spacing :
- 5.79 mm
- Connector Type :
- Receptacle, Center Strip Contacts
- Depth :
- 6.91mm
- Number of Power Positions :
- 6
- Mixed Contacts :
- No
- Circuit Application :
- Signal
- Contact Finish :
- Palladium-Nickel
- Color :
- Black
- Contact Finish Thickness :
- 5.00μin 0.127μm
- Total Number of Contacts :
- 228
- Number of Columns :
- 114
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- FEMALE
- IEC Conformance :
- No
- Height Above Board :
- 0.236 6.00mm
- Packaging :
- Tube
- Withdrawl Force-Min :
- .139 N
- Reliability :
- COMMERCIAL
- Mounting Type :
- Board Edge, Straddle Mount
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Length :
- 88.9mm
- Factory Lead Time :
- 26 Weeks
- Filter Feature :
- No
- PCB Mount Alignment :
- With
- Differential Signaling :
- yes
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mount :
- Edge, Straddle Mount
- Contact Plating :
- Gold, Lead, Nickel, Tin
- Width :
- 6.9mm
- Contact Pattern :
- RECTANGULAR
- Height :
- 5.9944mm
- Housing Material :
- Polymer
- Sealable :
- No
- Datasheets
- 767089-6

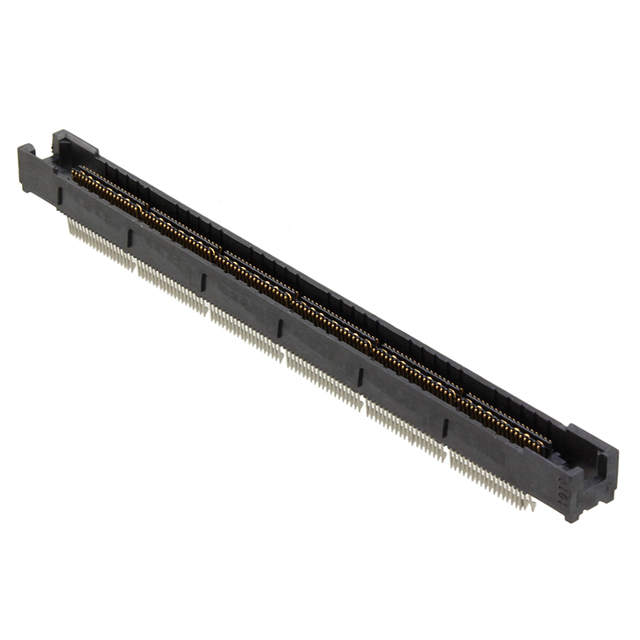

Receptacle, Center Strip Contacts Tube 2 Rows 0.025 0.64mm Board Edge, Straddle Mount 228 Positions MICTOR Palladium-Nickel SMD/SMT
767089-6 Overview
Currently, it is packaged in Receptacle, Center Strip Contacts.A Tube case is used to package the product.The mounting type of the device is Board Edge, Straddle Mount.A product of the MICTOR Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Board Guide, Ground Bus (Plane) when it operates.Using a Edge, Straddle Mount socket is required in order to mount the item.A temperature below 125°C is best for using it.The device must run at -55°C degrees.As this device is suitable for the operation with a 30V supply, it should be used with that supply.
767089-6 Features
MICTOR series
Package / Case: Tube
Mounting Type:Board Edge, Straddle Mount
Max Operating temperature at -55°C
