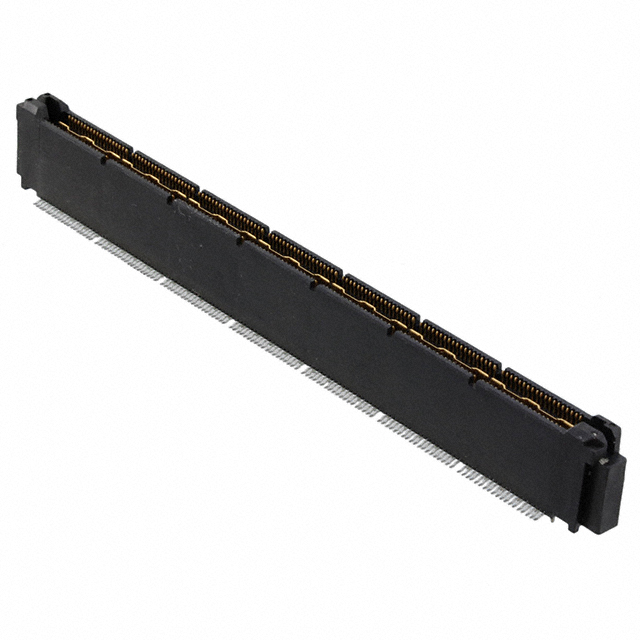

767057-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Connector Type :

Plug, Outer Shroud Contacts

PCB Contact Pattern :

RECTANGULAR

Plating Thickness :

5μin

Rated Current (Signal) :

1A

Height Above Board :

0.484 12.29mm

Stack Height :

12.57mm

Stack Height (Mating) :

12.57mm 21.6mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Depth :

0.484 inch

Reliability :

COMMERCIAL

Contact Finish Thickness - Mating :

120 nm

Contact Finish :

Palladium-Nickel

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

PCB Thickness :

1.57mm

DIN Conformance :

No

Pitch :

0.025 0.64mm

RoHS Status :

Non-RoHS Compliant

Factory Lead Time :

25 Weeks

Circuit Application :

Signal

Contact Finish Thickness :

5.00μin 0.127μm

Number Of PCB Rows :

2

Withdrawl Force-Min :

.139 N

Mount :

Surface Mount

Contact Style :

BELLOWED TYPE

MIL Conformance :

No

Option :

GENERAL PURPOSE

Operating Temperature (Min) :

-55°C

Contact Resistance :

10MOhm

Filter Feature :

No

Number of Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Mating Alignment :

Without

Housing Material :

Polymer

Row Spacing :

5.79 mm

ELV :

Compliant

Packaging :

Tube

Polarization Key :

POLARIZED HOUSING

Contact Plating :

Gold, Nickel

Insulation Resistance :

2MOhm

Length :

101.6mm

Color :

Black

Reference Standard :

UL

IEC Conformance :

No

Series :

MICTOR

Total Number of Contacts :

266

PCB Mount Alignment :

With

Dielectric Withstanding Voltage :

500VAC V

Contact Gender :

Male

Contact Pattern :

RECTANGULAR

Width :

5.2832mm

Orientation :

Vertical

Durability :

500 Cycles

Sealable :

No

Mixed Contacts :

No

Mounting Type :

Surface Mount

Flammability Rating :

UL94 V-0

Feature :

Board Guide, Ground Bus (Plane)

Operating Supply Voltage :

30V

Number of Conductors :

ONE

Published :

2006

Number of Positions :

266

Termination :

Solder
